Cracked Engine Sprocket

Forums

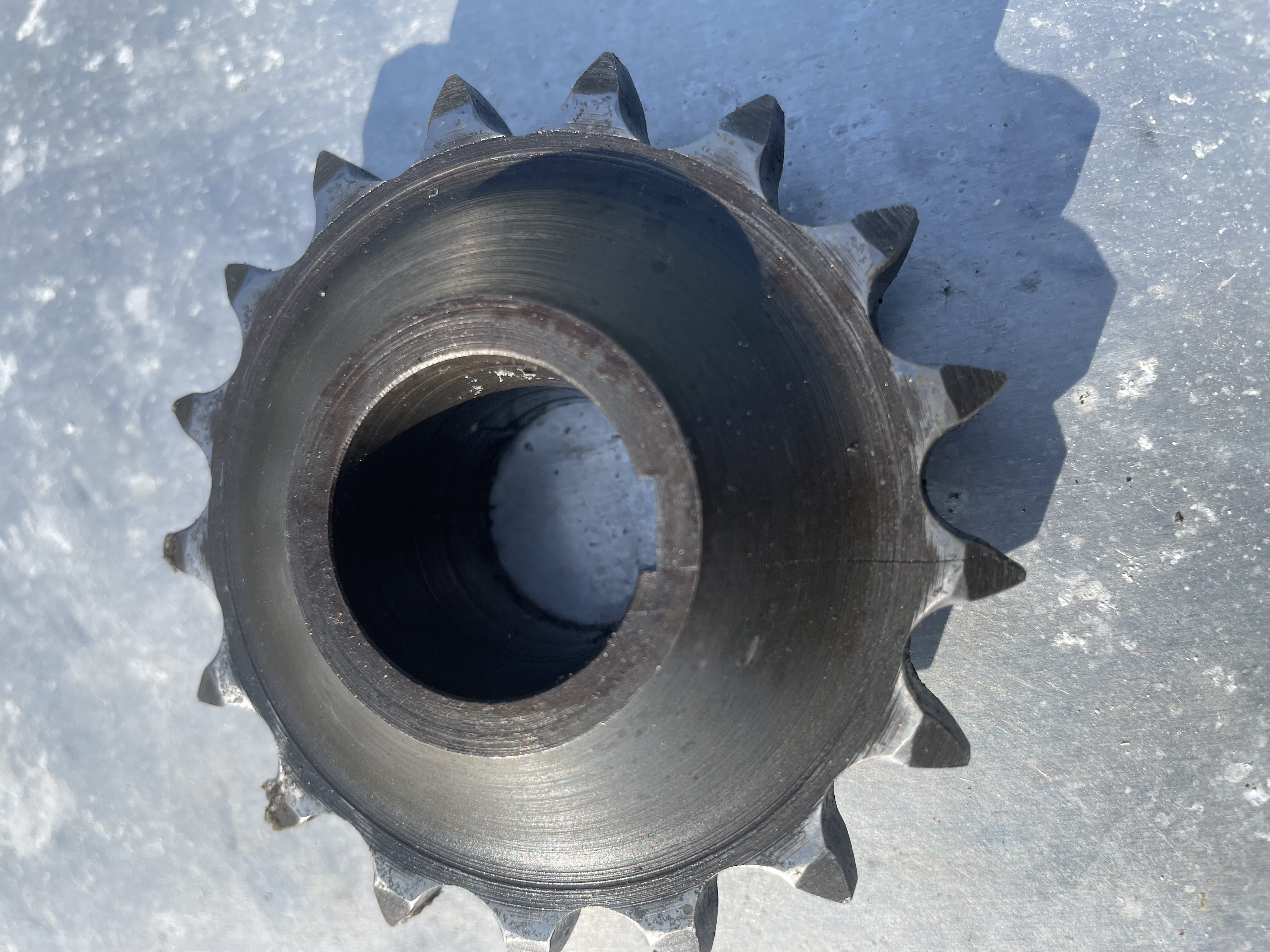

Is a cracked engine sprocket a common occurance or more likely a faulty part ? it was relatively new. Crack is at the bottom, starting at the keyway
dan

Sprocket

Permalink

I have never heard of an original sprocket cracking. I do wonder if this is an aftermarket one and perhaps not to the original specification.
I did have an original sprocket break clean in half on my New Holland 276 baler. A replacement from New Holland was £1200 + VAT. The second hand one at £120 seems like a bargain by comparison. And you thought bike spares were expensive...

Permalink

Should have bought a Massey Ferguson! This was from a supplier I regularly use, I'll contact them on Tuesday before I mention their name, I cant help thinking that the thread on the crank should strip before the sprocket cracks.

Permalink

Not something I have ever come accross, However with several different and reversing forces acting on the stress raiser that is the woodruff key slot , I am surprised we have not seen more as fatigue and old age increases. Wear pattern suggests alignment worth checking along with taper engagement.

Permalink

Robert It was a new sprocket - the alignment is slightly off but the best I can do with the 3 available offsets. I'll double check the taper (and key) when I get a replacement
Dan

Permalink

Perhaps the wrong steel spec?  Was the original case-hardened?  Perhaps this sprocket is through-hardened, lower grade steel and objected to being forced up a taper?

If the sprocket teeth are not hard, (don't really need to be), poor steel spec choice?

Many years ago I worked in a university metallurgy department, we were always on the look out for just this type of failure for students to study and determine how and why the failure occurred.  Quite a few failed motorcycle components found their way through the laboratory!

Permalink

Keyway a bit shallow in this sprocket?

Typical failure I would expect to see if key is too tall. Something has to give if the sprocket is held off the taper by the key.

Peter

Permalink

....would be keyway machined without proper radius at the bottom.

In reply to by michael_rettie

Permalink

As far as I can see from the standards, BS, DIN and ISO, no radius is specified for the key slot in the sprocket or on the key that mates with it, other than a vague reference to "breaking" the sharp corner on the key.


Permalink

... would be to use some fine lapping paste to check for good contact/seating of the sprocket to the shaft.  I'm still very suspicious of the quality of the keyway machining process here with the crack running right out of the keyway.

Permalink

Never mind all that, Dan, I just want to know how you found it?

I don't take the primary cover off from one year to the next, and I wouldn't be looking that closely at the sprocket if I did.

Don Anson
Melbourne

Don,
I had checked the timing with a disc and was re tightening the nut - I noticed that the chain was sticking on the engine sprocket and it opened up. The new one arrived, I lapped it onto the crank and measured the distance from the end of the crank to the sprocket then did the same with the key, I needed to take a little off the flat side to get it to sit firmly on the taper.  Hopefully that will be it all sorted!
Dan

Permalink

... I found with my Electra starter motor sprocket that lapping the tapers then omitting the key has worked for many starts. I think that often the key prevents the tapers from mating correctly.
