I've just dismantled my forks on my 1972 Commando as they were ratting a bit.

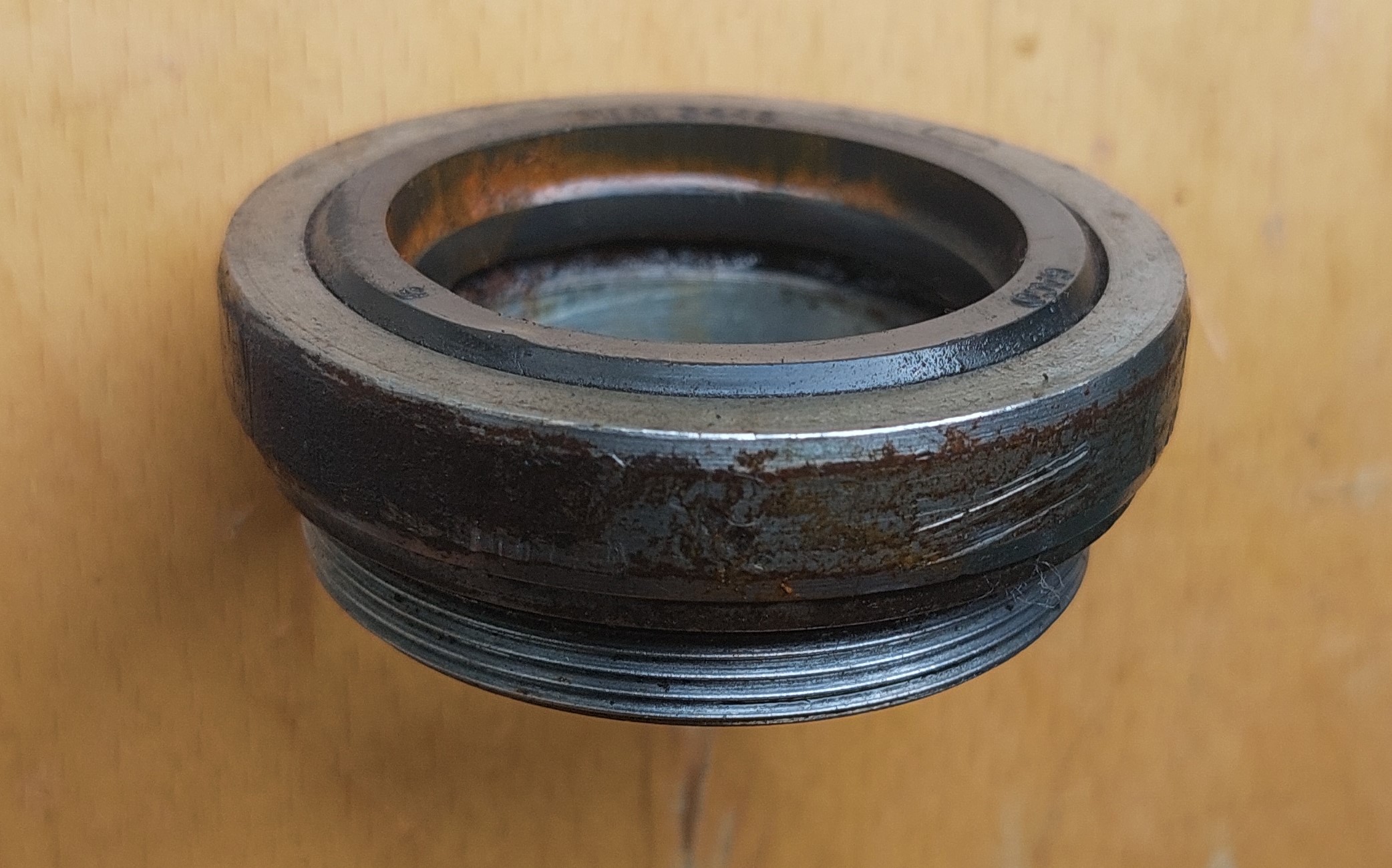

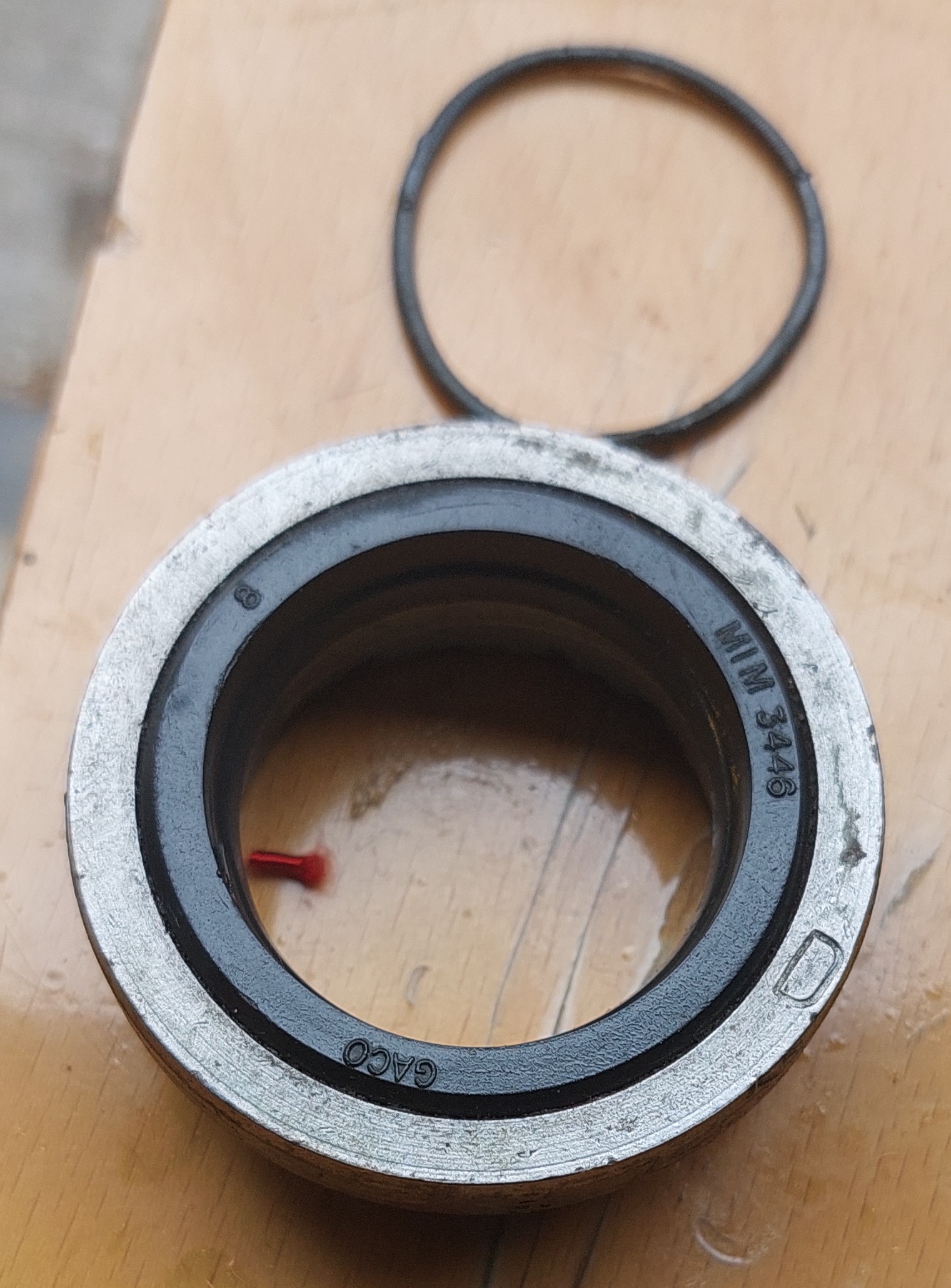

1. The collar seems different from what I see available - my one has a rubber seal and o-ring inserted into it. The o-ring came out but I couldn't get the seal out. Is this seal redundant given the one below it? See pictures.

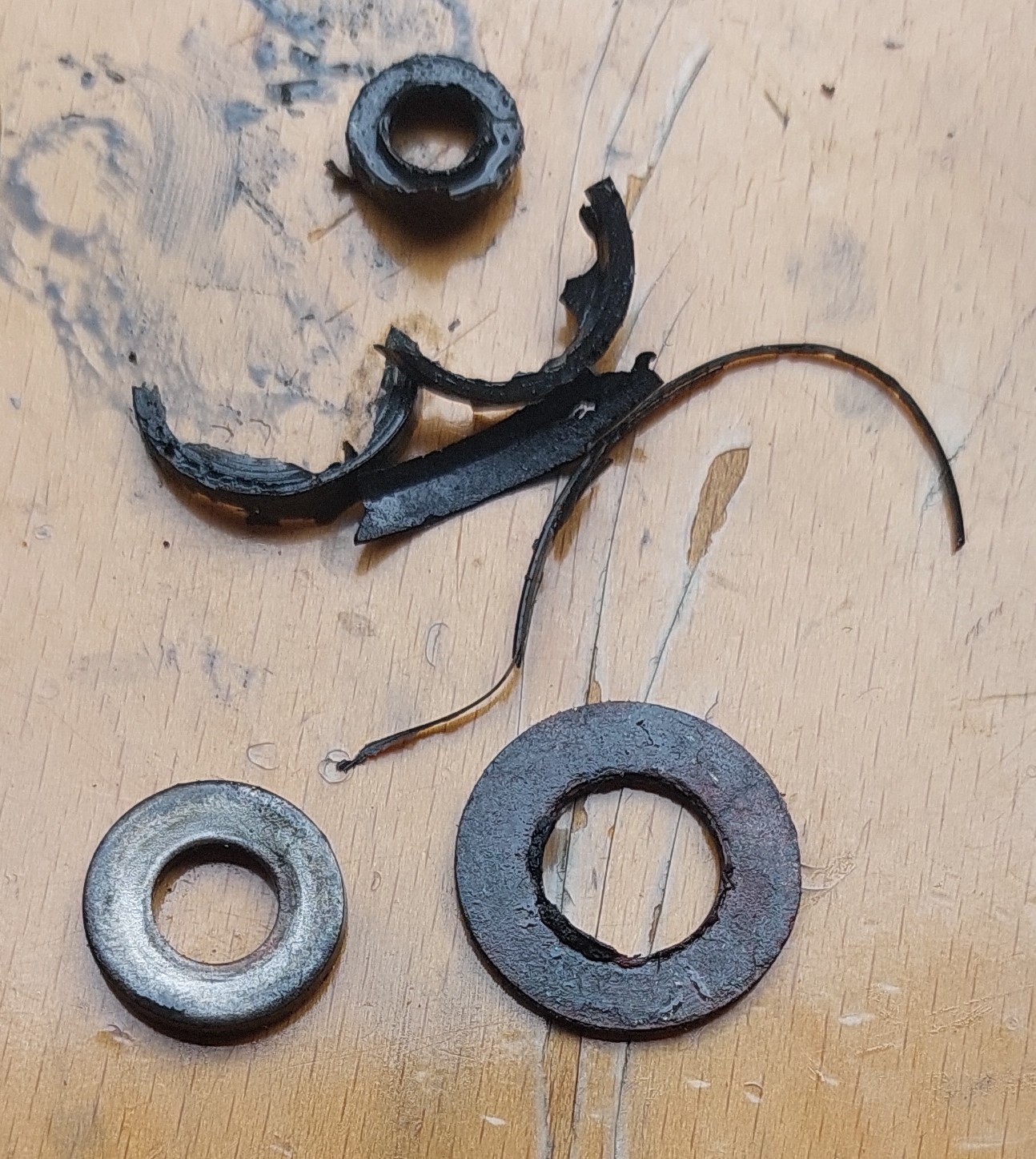

2. There were bits of a previous rubber seal at the foot of each fork slider and a different size washer inside each - one had a large fibre washer, the other a smaller metal washer. It looks like there was a rubber seal under or over the washers. See photo.  According to the drawings there should only be a fibre seal.

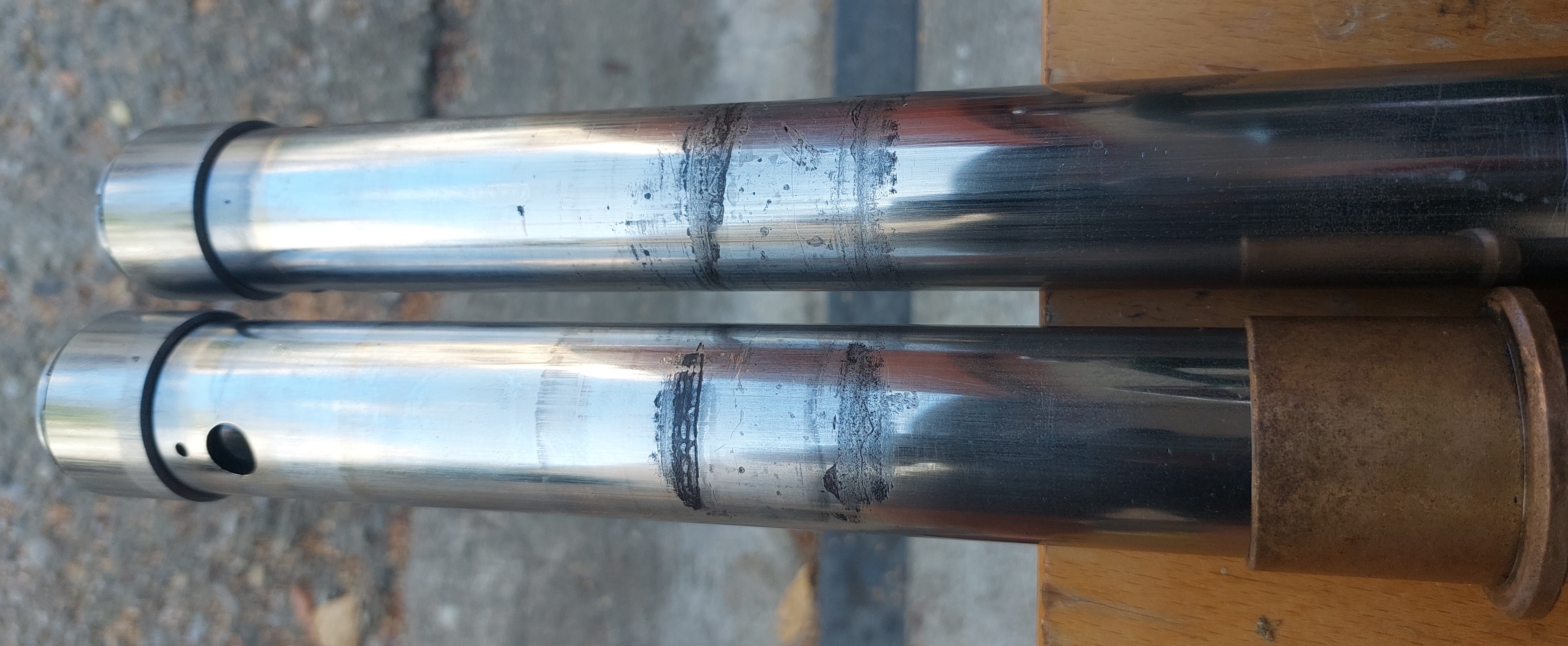

3. How bad does the scoring on the stanchions have to be before I should consider new ones? See photo

Thanks for any advice

Permalink

Looks like someone has made some 'improvements'. I've never felt the need to move away from the standard setup with regard to sealing performance.

Those stanchions are knackered. Maybe the mod was to move the oil seal away from the worn area.

Permalink

Yes, just ordered new stanchions.

Can anyone comment on the collar with the built-in seal and o-ring? I don't see any such item available now. Should I just reuse them?

Permalink

There's a strong "emergency engineering" vibe about these pix.

You might take a look at the Mick Hemmings (r.i.p.) fork overhaul video, available from the NOC shop (also covers brakes and wheels) for general insight.

Permalink

I've never seen the retaining collar modified to accept a seal. My guess would be that someone had a lathe and an idea. The collars will still do the originally intended job and be a bit lighter too. I wouldn't run the additional seals in the collar as well as the standard seal because it will introduce more stiction.

Permalink

So I got my new stanchions, bushes, Mick Hemmings video, etc. and rebuilt the forks. I thought this would stop the metallic clunk when the forks extend fully, but no. I checked the oil - I had put in 150cl of 5W-20 but changed that to 180cl of SAE 20W. Didn't make any difference.

I've since read a lot about this clunk being a design fault, and various solutions. The simplest seems to be using an extended upper bush but that begs the question: doesn't that just mean I get a clunk from the lower steel bush hitting the upper bronze bush before the damping tube tops out?

I don't feel capable of other solutions like blanking off holes and drilling new holes in the damper tubes.

Or do I just live with clunk? I won't be going off-road..

Permalink

I did both the Covenant conversion and the longer bushes. No clunk at either end of travel.

I did the Covenant mod and the longer bushes.

Worked very well, which makes me wonder.
If it was such a simple fix, why didn't the factory do it?

They had teams of blokes in the drawing office, what were they doing most of the time? Drinking tea?

Don Anson
Melbourne Australia

Permalink

Mick Hemmings shows a damper rod extension a few cm long in the video but I can't see that anywhere for sale. Seems that will that simply compress the spring more?  With what result?

Permalink

have a look at the above USA site for info on the fork improvement items.

Permalink

I'd put up with the clunk - it's only noticeable when you put the bike on the centre stand. Just use the side-stand when someone's watching :)

The idea of the longer top bushes is that there's a hydraulic lock before the lower bush hits. The one's from RGM do more or less get rid of it.

Roadholder forks have bigger problems than that clunk when compared to a more modern design. I recommend speaking to Maxton ( https://www.maxtonsuspension.co.uk ) who can update them.

Permalink

After the modifications my clunk free forks do feel less responsive to the bumps and i suspect that some experimentation with oil  grades and quantity may be needed to improve matters.

Permalink

The damper aluminium top bushes are often forgotten about, usually wear out quickly and can be a cause of poor damping and extension clonk.  RGM have a cast iron version that lasts for ever. I fitted a pair near on 50000 miles ago and still no clonk. They took a little time to bed in but well worth it.

Permalink

I was about to fit some of the longer fork top bushes from RGM ( https://www.rgmnorton.co.uk/buy/extra-long-fork-stanchion-top-bush-stops-topping-out-2-9-74mm-o-all-lgth-pr_2298.htm ) and noticed a possible problem with variations between stanchions.

Some are fully chromed down to the bottom bush and these will be fine.

However, on some the chrome stops short of the oil bleed holes, leaving a noticeable step down to a reduced diameter. On the ones I have, the plating stops 25mm above the bottom bush and the diameter is 0.06mm less than the plated section. The bore of the RGM bushes is relieved in the middle so that the bush bears at top and bottom over a height of 20mm each with a non-bearing section between; presumably to reduce friction.

The upshot is that when sliding the the bush up and down by hand it noticeably 'catches'. I don't know whether this would be an issue when the fork is assembled but at full extension more rocking movement is possible. Plus the hydraulic lock is going to be significantly reduced because of the additional clearance. Therefore I don't think using the RGM bushes with 'short-plated' stanchions will give the best results.

I don't know the provenance of the stanchions in the pictures below. The fully chromed one is from an 850 Mk3 but the bike was was 15 years old and seriously messed about when I bought it so I have no idea whether the stanchions are OE. The reduced plating one will have come from Hemmings or Fair Spares or the like (not RGM) at least 25 years ago. All of which means I have no idea what is OE or what is sold now but, from website pictures, it looks like RGM stanchions are fully chromed and Andover Norton stanchions are partially chromed.

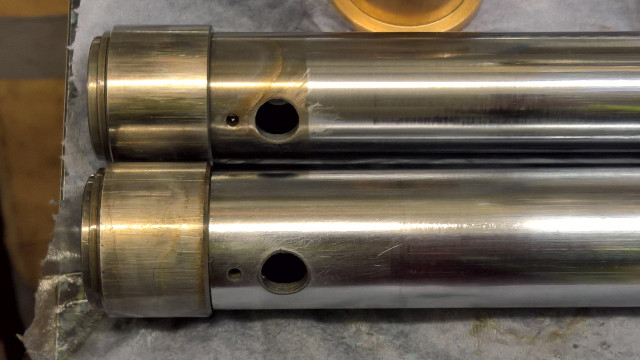

both stanchions

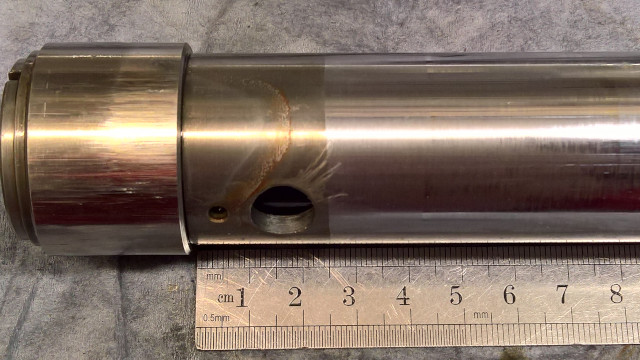

short plating

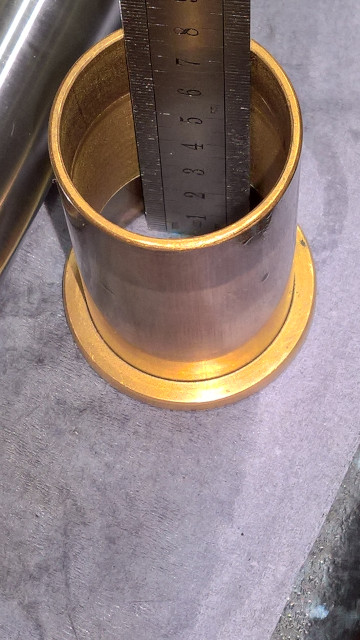

RGM long top bush
