Hello,
I need some help please.
I ordered to the central wheels2 wheels rims and 2 sets of black spokes for my 1950 ES2.
I received the order but the spokes of the brake drum side ofthe front wheel are shorter of those who were in the old rims.
I questioned the central wheels and they say the front wheel is x2 lacing the brake drum side and x3 lacing the other side.

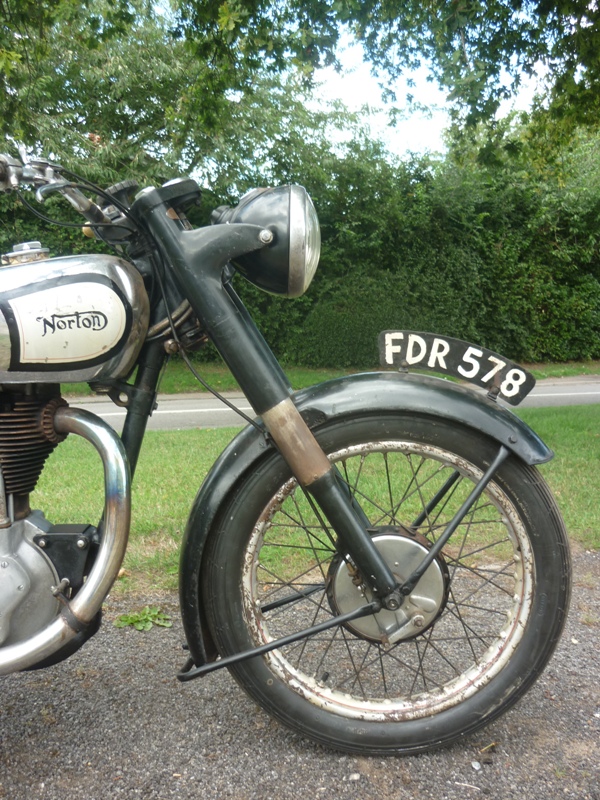

I think originally supposed to be x 3 lacing, I've seen many wheels, some in unrestored bikes, books and old sales brochures as you can see in the pictures attached, and I always see x3 lacing on the drum side.
I saw x2 lacing only in some rebuilt wheels as in the last photo attached.
Can anyone confirm this and if possible what the length of the spokes please?
Vitor
Attachments 1950-01_zps1b9bae50.jpg 4868nrt20013_zps234293ad.jpg www.nortonownersclI'm afraid Central think…
- Log in to post comments
I also have been caught ou…
I also have been caught out by stipulating what machine I want the spokes for. Now I only state the length and gauge of spoke I require(as per their web site), that way I get what I want.
- Log in to post comments
Hello Vitor, had a look to…
Hello Vitor, had a look to the 1955 ES2 I'm working on at the moment.
Oily rag cond, maybe original.
2 cross lacing at the drum brake side, 3 cross lacing at he other.
Hope this help .BenoÃ?t
Previously Paul Knapp wrote:
I also have been caught out by stipulating what machine I want the spokes for. Now I only state the length and gauge of spoke I require(as per their web site), that way I get what I want.
- Log in to post comments
Previously vitor_brito wro…
Previously vitor_brito wrote:
Hello,
I need some help please.
I ordered to the central wheels2 wheels rims and 2 sets of black spokes for my 1950 ES2.
I received the order but the spokes of the brake drum side ofthe front wheel are shorter of those who were in the old rims.
I questioned the central wheels and they say the front wheel is x2 lacing the brake drum side and x3 lacing the other side.
I think originally supposed to be x 3 lacing, I've seen many wheels, some in unrestored bikes, books and old sales brochures as you can see in the pictures attached, and I always see x3 lacing on the drum side.
I saw x2 lacing only in some rebuilt wheels as in the last photo attached.
Can anyone confirm this and if possible what the length of the spokes please?
Vitor
- Log in to post comments
Vitor.....your wheel has b…
Vitor.....your wheel has been laced up, on the drum side, using the same pattern as the later drum braked Commando. I have been informed that it is safe........ but for whatever reasoning was not used on any earlier full-width drum Nortons.
Your pictures of early ES2 wheels are correct.On the early ES2 and Model 7 bikes spoke 1 is opposite to spoke 2 with no spokes in between. See attachment for ES2 & Model 7 Wheels.
Your wheel has the later spoking where.....if you pick any 4 spokes going round the hub, you will notice that spoke 1 is almost exactly opposite spoke 4 in direction and there are 2 other spokes in between. See the second attachment showing the top of a Full Width Hub.
Attachments Full%20Width%20Drum%20Spoking.bmp model-7-spoking-bmp- Log in to post comments
Thank you all for the comm…
Thank you all for the comments.Phil Hannam....sorry if I explain me or write something wrong. I'm from Portugal and my English is not the best ... I have not laced, my newwheels I just received the ordered and saw that thespokes were short for lacing I have in front of the old wheel...the spokes have received to the side of the drum are 6 3/16 ", and to be equal to the old ones, which are mounted should be 1 1/8" longer. (I attached picture of my old wheel)I contacted the central wheels and they said I'm wrong, and that my wheel has the wrong lacing,if I want the longest rays I have to pay...but from what I see in the end of norton '40s and early' 50s my wheel is correct, so I came here for help to clarify this ..From what I understand my old wheel is laced well ... and the lacing that the central wheels says to be correct, is used later in Nortons as the command, and not in my ES2 1950, is it?
After exchanging many emails, now they say that are available to change the spokes.
Attachments dsc_1400-jpg- Log in to post comments
Rims supplied by Central a…
Rims supplied by Central are drilled to suit the pattern they have decided upon. Will not always match what Norton did, Would be helpfull if they told you this.I think they do this to reduce the range they have to stock,Means you can not always follow the pattern or be orriginal.
- Log in to post comments
Vitor.........your English…
Vitor.........your English is far better than my Portugese. Thank you. The spoke lacing on your ES2 front wheel is correct for the year of manufacture. So your picture is correct and if your new spokes were long enough then that is how your new wheel should look. If you can change your spokes, for longer ones, then I suggest you that you do this. But you must use your old rim, or one very similar because the spoke holes have probably been drilled to suit the pattern your picture shows. As Robert says, a different rim may have been drilled differently.
- Log in to post comments
Robert.... They told me th…
Robert....They told me that these new rims, were the most, near the original Dumlop for my Norton, and had not available for delivery, I was 4 to 5 weeks waiting for them. I hope, that the drilling, is correct.
Regards
Vitor
- Log in to post comments
Coincidentally, I was asse…
Coincidentally, I was assembing a 21" wheel with rim and spokes from Central just this weekend, was having some difficulties as I didn't have an example to refer to, and so was checking out the neighborhood here for advice when I ran across this discussion. After one false start, I got it together with x2, brake side, and x3 on the other. Looks ok to me. I looked all over the web and saw both variants over all years.
Attachments dsc02243-large-jpg- Log in to post comments
Previously Michael Rettie…
Previously Michael Rettie wrote:
Coincidentally, I was assembing a 21" wheel with rim and spokes from Central just this weekend, was having some difficulties as I didn't have an example to refer to, and so was checking out the neighborhood here for advice when I ran across this discussion. After one false start, I got it together with x2, brake side, and x3 on the other. Looks ok to me. I looked all over the web and saw both variants over all years.
This is a good spoking. It shows pairs of spokes at a near tangent on each edge of the hub rim opposed by another pair on the opposite side. So the pulling forces are balanced. You will notice that the pattern on both flanges has spoke 1 close to 180* opposite that of spoke 4. This is the pattern used on the later full-width hubs but should be ok for this earlier wheel as well.
- Log in to post comments
I've been checking the ri…
I've been checking the rims and Robert is right, the drilling of the rim of Cemtral Wheels, is not quite the same as Dunlop, on the rim of the Central wheels, the holes of the spokes on the side opposite to the drum, has the opposite angle to original rim Dunlop.
About lacing...they made this ring to be x2 lacing on the drum side, and x3 on the other side but I think with the longest spokes can bex3 on the drum side as was originally, without problem.
- Log in to post comments
There is the odd occasion…
There is the odd occasion when I'm right ! But anyone who thinks they know it all ----does not.
- Log in to post comments
Hi I am restoring a 1951 E…
Hi
I am restoring a 1951 ES2 plunger. In the light of whats been said above, can anyone give me offset and spoke length measurements, for both front and rear wheels? Would be a great help, my bike was heavily damaged in a fire the origanal wheels were ruined. Graham
- Log in to post comments
Rear wheel offset 2" from…
Rear wheel offset 2" from right edge of hub to wm2x19 rim. Not gospel but what I measure on mine.
- Log in to post comments
Hello Graham, these were t…
Hello Graham, these were the measures ofspokes that I received from the central wheels for my Norton ES2 1950:
Front â 20 - 6 3/16â x 9 gauge x 90 degree (x3 Lacing)
20 â 8 1/4â x 9 gauge x 90 degree (x2 Lacing) These spokesare wrong for my and your ES2, the correct lacingis x3 and correctspokes should be1 1/8â inches longer.
Rear â 20 â 8â x 9 gauge x 90 degree (X3 Lacing)
20 â 8 1/16â x 9 gauge x 90 degree ** (Spoke hole slots on speedo side) (X3 Lacing)
Regards.
- Log in to post comments
Hi Guys Thank you all for…
Hi Guys
Thank you all for the information, will get some pics up as soon as I have the wheel together.
Graham
- Log in to post comments
