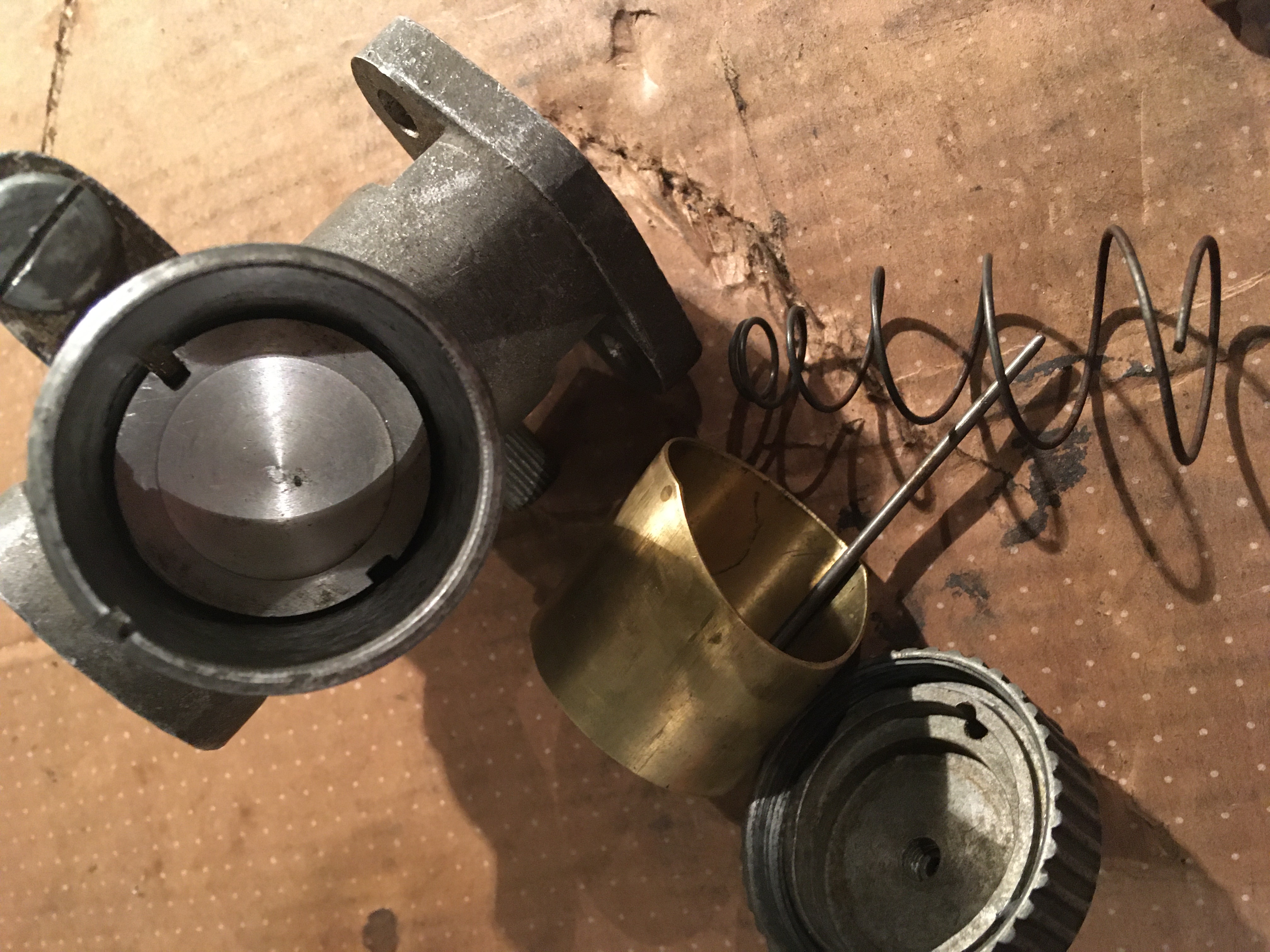

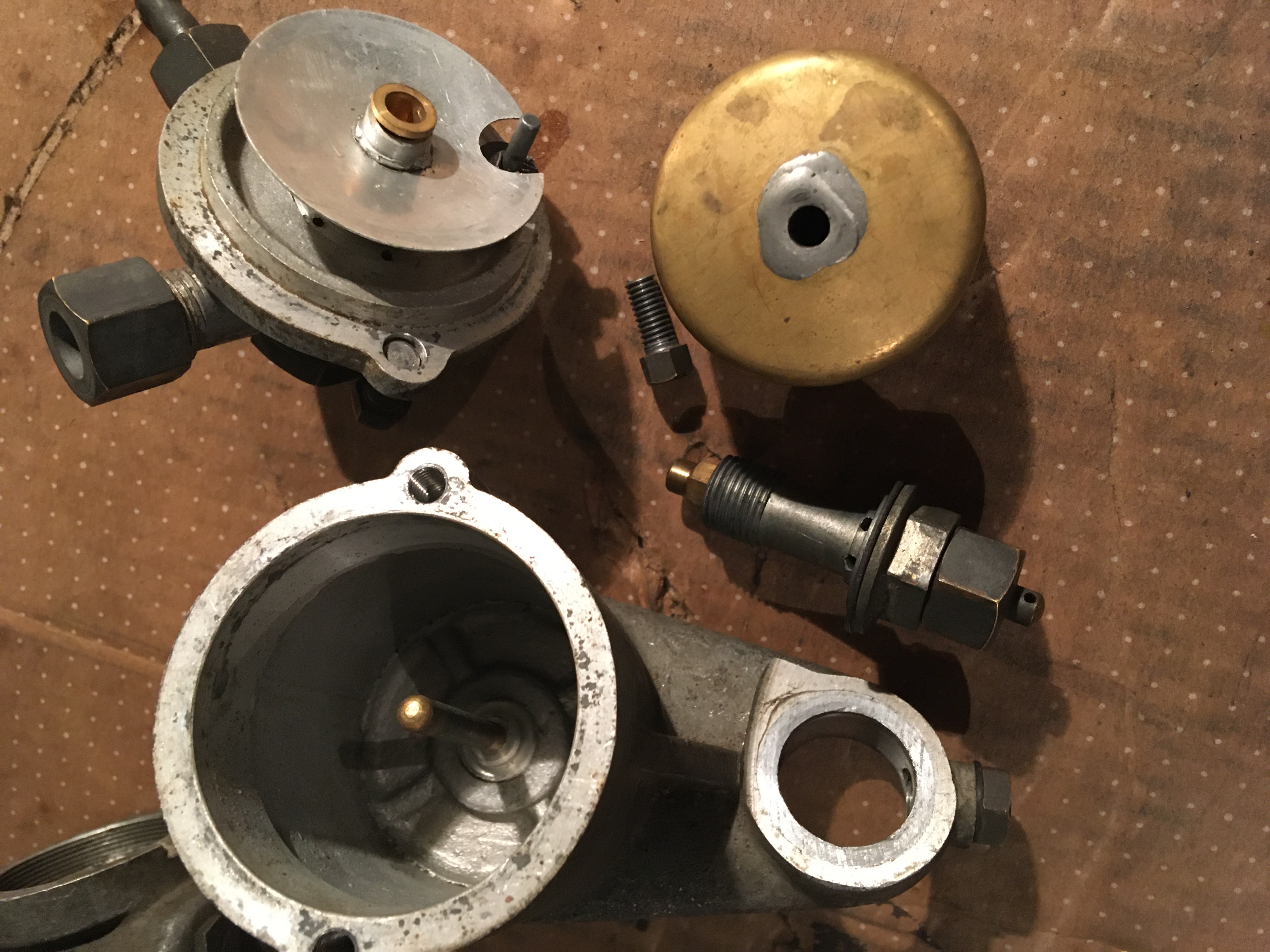

Hello I buy in Czech republic Amal replics which was made in 50s when wasnt possible to buy here parts from west coutries
it was for racing bikes in countries under communism government
it is only foto of interesting part, how must people be inventive if they want race in this years in my country.
Tomas
Good old left side Ingenuity
- Log in to post comments
amal TT czech

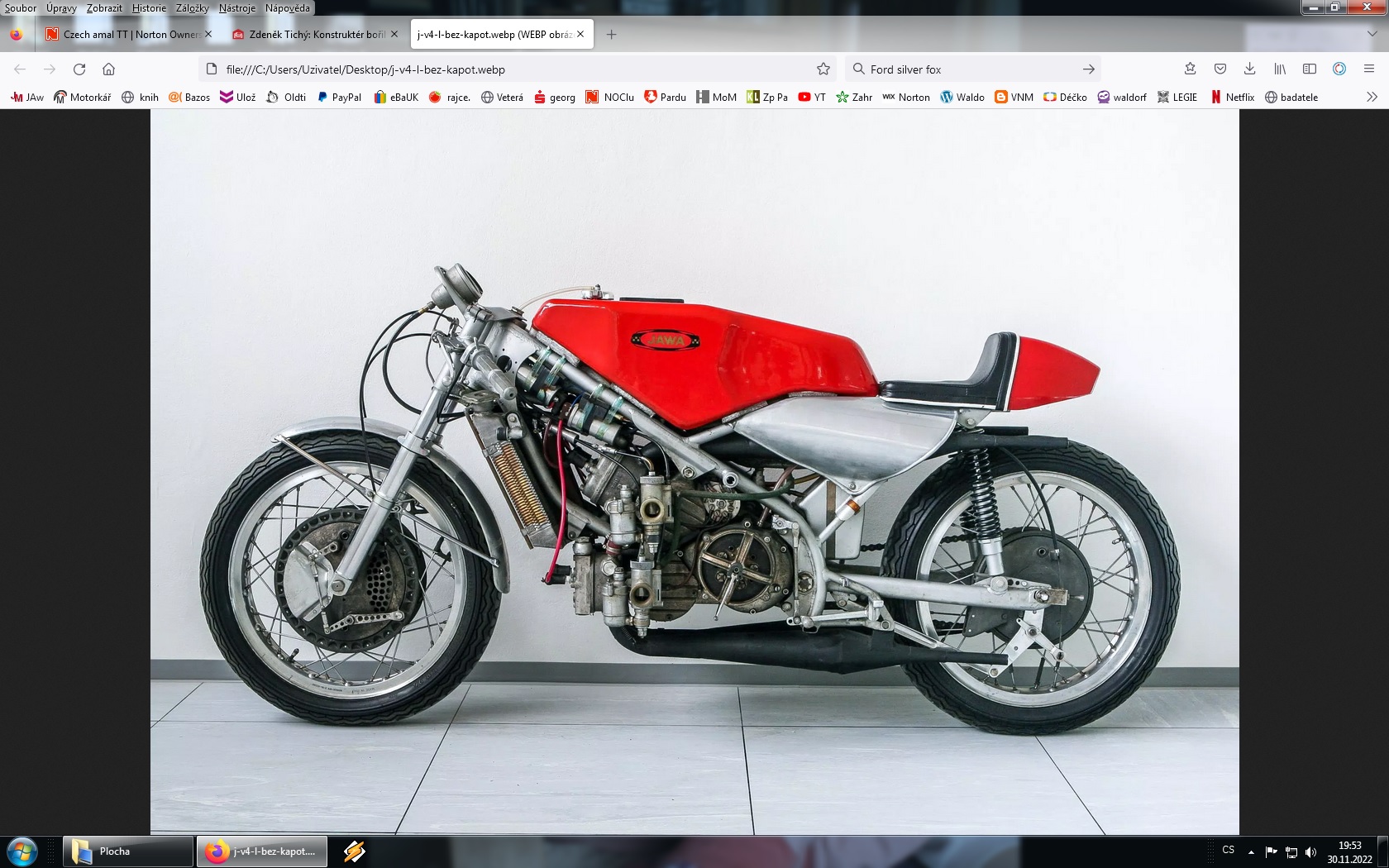

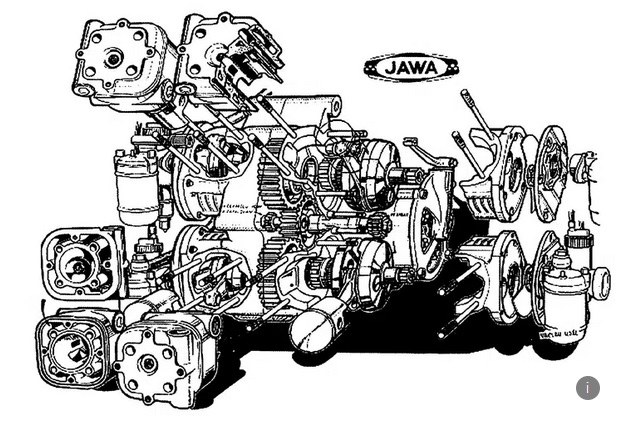

here possible fasters bike jawa 350 in 1968, top speed on Hockenheim 267km/h
- Log in to post comments
Yummie
That’s not been copied by the big japs much has it!,, still using the enriching device on the side of the carbs. And a left hand wrist grip….?
The brakes are a work of art with pocketed spokes and effectively vented rear drum. What a screamer that must have been. Don’t tell me that’s in the shed Thomas….
great picture!,
Jon
- Log in to post comments
It's not actually a replica TT carb
If you look at the pictures, the jet holder is off-set to the side of the carburetor. The needle passes down the side of the throttle slide. That is characteristic of the AMAL GP carburetor, but not the TT. From the look of it, it's a copy of the GP, not the GP2, which had a different pilot mixture arrangement based on the Monobloc.
- Log in to post comments
Mirror image.
Hi All,
The photo of the works Jawa looks to be a mirror image, as the front brake lever is also on the left in the photo. If so, the carb and float will be the other way round. The remote needle was also used on the Amal RN in the late 1930s.
- Log in to post comments
Well spotted Paul…
You can see where the closed the central hole in the jet block casting. I’m not familiar with remote needle Amal’s. I always thought the needle was truly remote to the throttle body similar to the enrichment device on the right side.
Thanks
Jon
- Log in to post comments
Remote needle.
Hi Jon/all,
Yes, that is correct with the needle connected to the slide by a short bar whicn means there is a slot that runs half-way down the body for the bar to run in.
- Log in to post comments
If the image was reversed…
If the image was reversed wouldn’t JAWA on the tank be reversed too?
- Log in to post comments
NOT mirror image.
Hi Dan,
Yes, well spotted. I was looking at the mechanicals rather than the obvious. Whoops !
- Log in to post comments
Not only a copy, but what looks like a very robust version. The engineering in eastern European countries has always been inspiring. I had the pleasure of a Tatra 87 when based in the Netherlands some years ago, full of smart ideas. Necessity; the mother of invention...
Preserve it Thomas it looks a fine piece of engineering...
Cheers
Jon
