Hi everyone,
I'm just fitting a "low level" Interstate exhaust system to my 1972 Commando(having removed my more commonupswept pea-shooter system) and am having difficulty finding the best route for the rear brake cable. Is there anyone who has the "low level" system fitted that can advise how the cable is best routed? (I'm going low level exhaustsystem to gainclearance for my Krauser panniers).
Regards, Alan
Previously Alan Throssell…
- Log in to post comments
Here is a picture showing…
Here is a picture showing the correect route......I hope
Attachments 100_0411-jpg- Log in to post comments
Thank you Michael for you…
Thank you Michael for you reply and the picture. The route pictured was what I was trying to do but my cable will not reach properly. I am aware of the danger that the brake can be operated âautomaticallyâ when the swinging arm rises and this is what Iâm trying to avoid. I shall buy a new cable which I hope will be more flexible than my âwell usedâ one and give that a try. Your picture shows the Peashooters, my Low-level system has different mounting brackets which has created this problem.
Regards, Alan
Previously michael_jobson wrote:
Here is a picture showing the correect route......I hope
- Log in to post comments
Hmmm...the 1973 brochure a…
Hmmm...the 1973 brochure appears to show the cable routed between the mounting plates..
[IMG]http://i248.photobucket.com/albums/gg164/commando16h/NOC/Afbeelding%2087_zpsj9dgusz2.jpg[/IMG]
The 850 Mk1 brochure from later in the year though shows it routed behind. Probably not clear enough to help much.
[IMG]http://i248.photobucket.com/albums/gg164/commando16h/NOC/Afbeelding%2088_zpslq6w0aoo.jpg[/IMG]
Not a lot of help, Al. Sorry about that !
- Log in to post comments
Here it is on my 68 model.…
Here it is on my 68 model. Suggest you keep it as straight as poss.
This bike is an import from the US to Australia and note the incorrect extended silencer mounts that were already on it.
Note: I had to put a return spring on the pedal though even after oiling the cable and stripping/cleaning/greasing the brake acuator.
Patrick
Attachments img_4375red-jpg- Log in to post comments
The early traditional Nort…
The early traditional Norton silencers were mounted lower and parallel with the ground, but the run of the brake cable is effectively the same as in my photo.
If you want to fit a spring to the rear brake pedal then this is a better bet. As well as aiding pedal return it will also hold the brake pedal in the normal position even if the cable breaks. It is available from Norvil, and I guess other Norton parts suppliers.
Incidentally the rear brake cable for your silencers appears to be listed as the same part number as on mine.
Attachments 100_0415-jpg- Log in to post comments
Ref the pedal return sprin…
Ref the pedal return spring, I think the part number is 064172, but haven't got the parts book to hand. I would strongly reccomend if you don't have one, fit one. As Michael points out, it doesn't just act as a return spring, but stops the brake pedal falling to the ground & digging in to the road surface with the inevitable results should the cable fail. A lesson I learned the hard way many, many years ago.
Regards, Tim
- Log in to post comments
Spot on Tim. The spring is…
Spot on Tim. The spring is ;listed by Norvil as 064172 as you say. I cannot imagine what it must be like if the cable snaps and the brake pedal drops and digs into the tarmac.
Michael
- Log in to post comments
1. Not to worry folks - I…
1. Not to worry folks - I tried one of those springs last year to get my bike thro' the Police Inspection here in Perth. (e.g. MOT) but gave up as I couldn't get it to fit in the space between the pedal and footpeg bracket.
A spring was needed primarily to pull the brake switch to 'off'.
My spring does also support the pedal with all the rear brake tension slackened off - so it will also hold the pedal up if the cable breaks.
I like the rear brake pedal set high giving me maximum clearance at the shoes so wonder if that combined with the older type parts might be preventing me from getting the suggested spring from fitting?
I've attached a pic of the spring and ask if it is the correct one and best way to fit it.
Cannot get the system to allow me to post two pics so will post a pic of my set up with the tension slackened off as part 2. I'm happy with it as is but any suggestions are most welcome.
Attachments img_4383-jpg- Log in to post comments
Previously patrick_lindsay…
Previously patrick_lindsay wrote:
Attachments img_4384-jpg2. Here is the view with all tensionslackened off.
- Log in to post comments
Previously patrick_lindsay…
Previously patrick_lindsay wrote:
Attachments img_4396-jpg3. Here is the pedal to footpeg clearance with the pedal fully up.
- Log in to post comments
Patrick here is how the re…
Patrick here is how the return spring fits. It simply goes around the boss in the rear brake pedal so no extra clearance is required from standard. HTH.
Attachments 100_0416-jpg- Log in to post comments
Patrick another angle show…
Patrick another angle showing the spring fitted.
Attachments 100_0415-jpg- Log in to post comments
Very many thanks Michael,…
Very many thanks Michael, I'll re-try again later when I pull it all down to do the isos/S/A bushes.
(Suspect the spring normally sits in the relieved face area of the brake pedal locating boss but the machined area is not accessible for this purpose unless I set the brake pedal rest position much lower like yours - my brake pedal may also be different on it's inside clearance)
Patrick.
- Log in to post comments
Hi Richard, thanks for the…
Hi Richard, thanks for the pictures, very helpful, exactly the info I was after. I will try both cable routes on my bike and then decide which I prefer (which one works better), then I'll post on here my findings. Many thanks, Alan
Previously richard_payne wrote:
Hmmm...the 1973 brochure appears to show the cable routed between the mounting plates..
[IMG]http://i248.photobucket.com/albums/gg164/commando16h/NOC/Afbeelding%2087_zpsj9dgusz2.jpg[/IMG]
The 850 Mk1 brochure from later in the year though shows it routed behind. Probably not clear enough to help much.
[IMG]http://i248.photobucket.com/albums/gg164/commando16h/NOC/Afbeelding%2088_zpslq6w0aoo.jpg[/IMG]
Not a lot of help, Al. Sorry about that !
- Log in to post comments
Previously michael_jobson…
Previously michael_jobson wrote:
Previously Alan Throssell wrote:
Hi everyone,
I'm just fitting a "low level" Interstate exhaust system to my 1972 Commando(having removed my more commonupswept pea-shooter system) and am having difficulty finding the best route for the rear brake cable. Is there anyone who has the "low level" system fitted that can advise how the cable is best routed? (I'm going low level exhaustsystem to gainclearance for my Krauser panniers).
Regards, Alan
Alan, whatever you do with the cable DO NOT insert it in the gap between the upper and lower bolts fixing the silencers to the main support brackets. It may look neat but is potentially lethal.

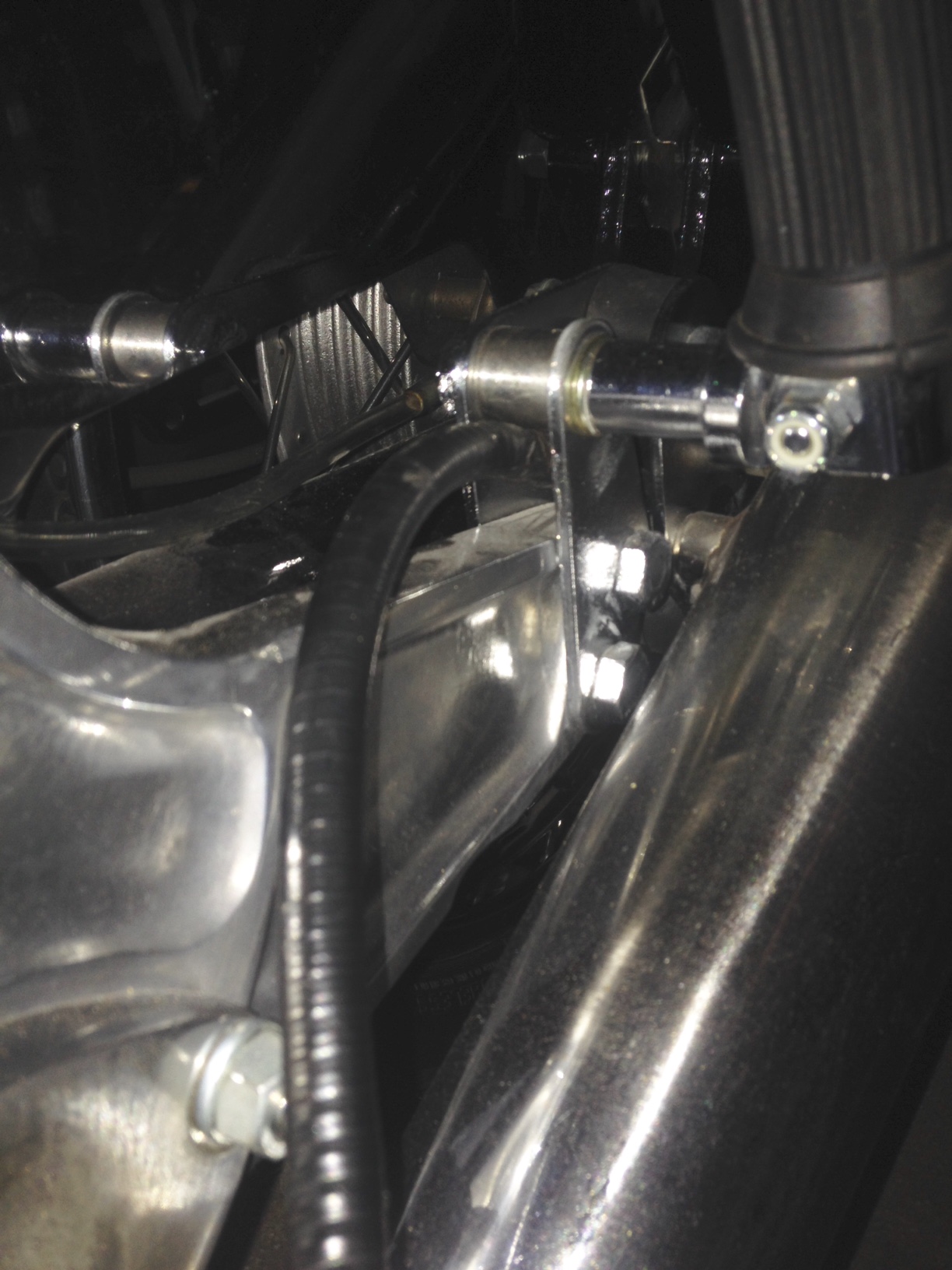

Whoops, guess the previous owner of my beast went for asthetics then!Here is how its currently routed (71'), ill have to change out.
Attachments rearbrakecable.jpg- Log in to post comments
That is a killer. simply r…
That is a killer. simply run the cable behind the inner mounting plate. It is long enough.
- Log in to post comments
The cable routing is a bit…
The cable routing is a bit tricky and sadly I don't seem to have found the best yet either. However, as far as cable breakage goes, I have cut an inch out of an old bicycle inner tube and slipped it over the pedal and the footrest mount. It doesn't change the operation of the break, is a great failsafe AND means the break light switches off properly. Cheap solustion...
Rupert
- Log in to post comments
The cable routing is a bit…
The cable routing is a bit tricky and sadly I don't seem to have found the best yet either. However, as far as cable breakage goes, I have cut an inch out of an old bicycle inner tube and slipped it over the pedal and the footrest mount. It doesn't change the operation of the break, is a great failsafe AND means the break light switches off properly. Cheap solustion...
Rupert
- Log in to post comments
Previously Alan Throssell wrote:
Alan, whatever you do with the cable DO NOT insert it in the gap between the upper and lower bolts fixing the silencers to the main support brackets. It may look neat but is potentially lethal.
