Jubilee Headlight Adjustment

Submitted by kieren_blake on Wed, 17/05/2023
Forums
Light Twins

Can anyone send me a couple of pictures of how the Jubilee headlight angle is controlled please?

Rebuilding my ‘66 and there was nothing positioning it prior to the rebuild - other than the rigid aged wiring looms!

Thanks

Submitted by tony_ripley on Thu, 18/05/2023

Permalink

Surely you just loosen the bolts either side attaching it to the fork leg shroud ears and then adjust to suit?

Or am I missing something here?

Submitted by robert_tuck on Thu, 18/05/2023

Permalink

Headlights were tested at Mot time . To set mine up I put the bike on a level surface at night and pointed at the garage door 25 foot away . The main  beam should strike the door at the same height as the bike , the dip should strike the base of the door. And angle towards the near kerb . I have passed 3/4 bike,car and van MOT's every year for at least 30 years. 100 + MOt's  and no fails .A few close shaves though (till I got them to read the rules and do it right !)

Submitted by kieren_blake on Thu, 18/05/2023

Permalink

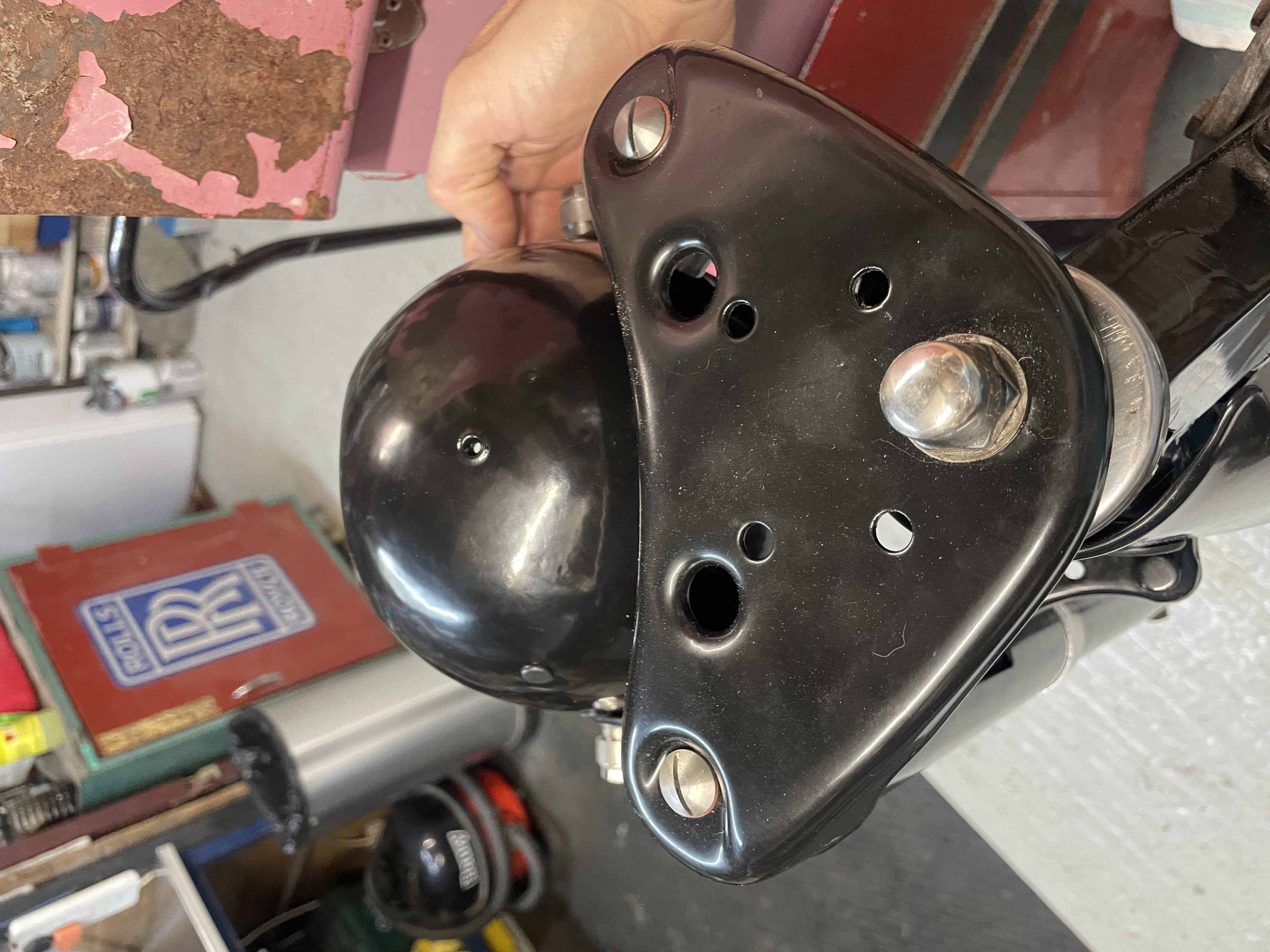

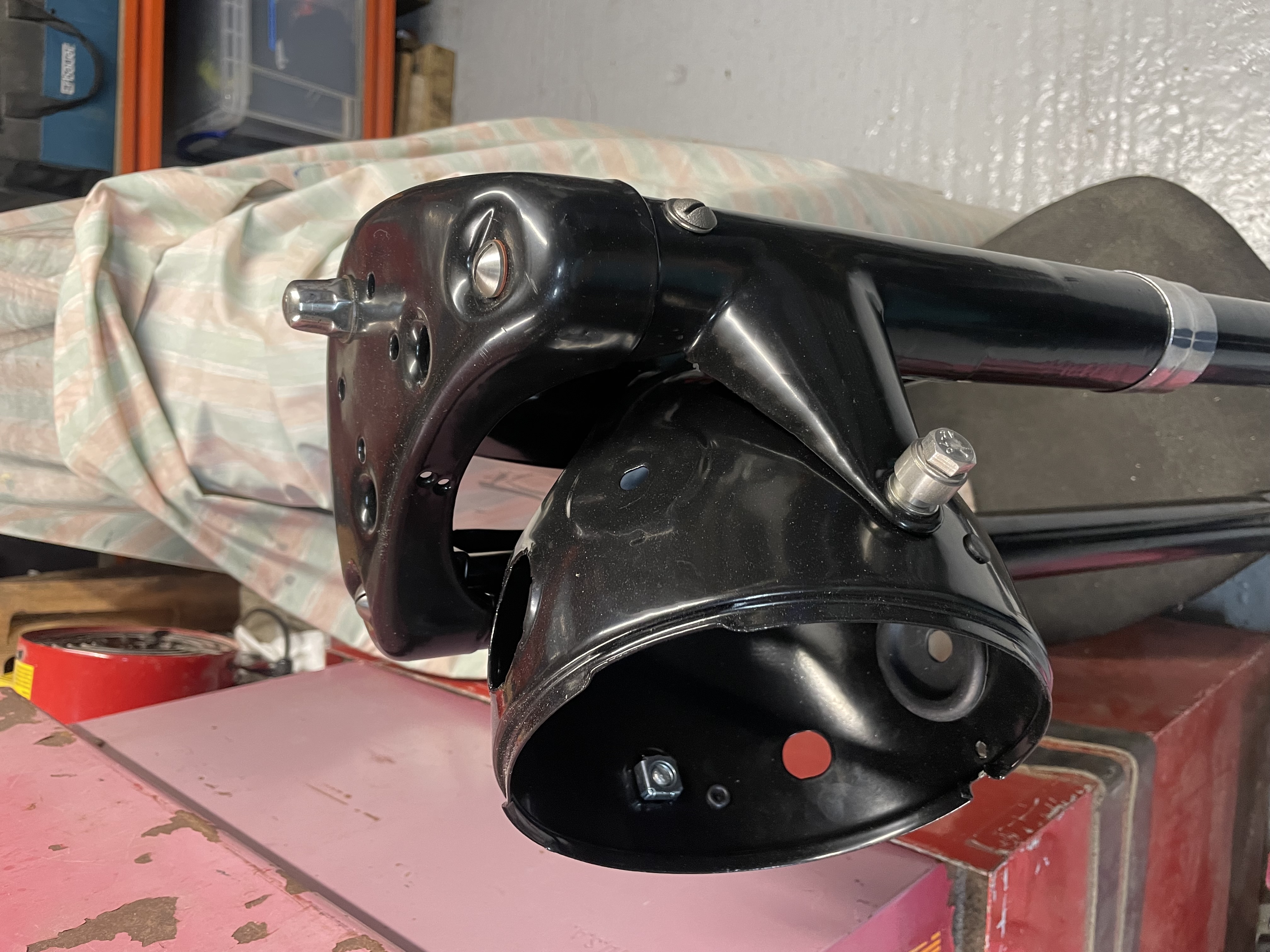

There is a threaded screw hole in the back of the headlight shell & what looks like mountings in the fork yoke, it looks as though a bracket would have gone between those two points to facilitate accurate adjustment & adequate support.
