ES2 Plunger Rear Wheel Fitment

A Surrey branch member had similar issues that also had brake shoe bolts fouling the drum and finished up making shims and spacers . Will get him to look.

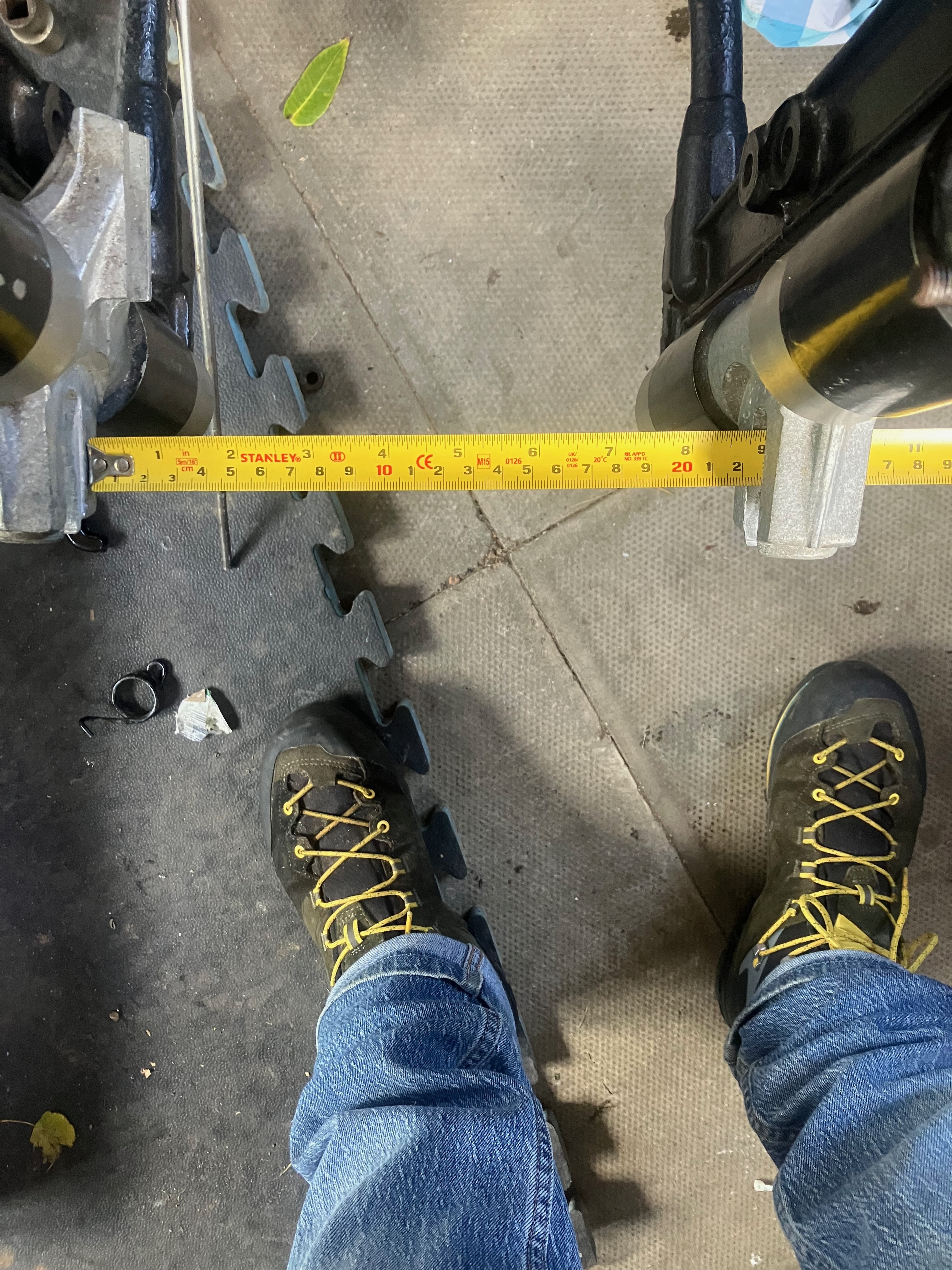

The plungers on both my bikes are both about 9" apart and the centrelines of the plunger shafts are about 10". You might have to jack the frame apart slightly (making sure to keep the shafts parallel).
John


.......improper assembly or incorrect parts long before the frame being bent.

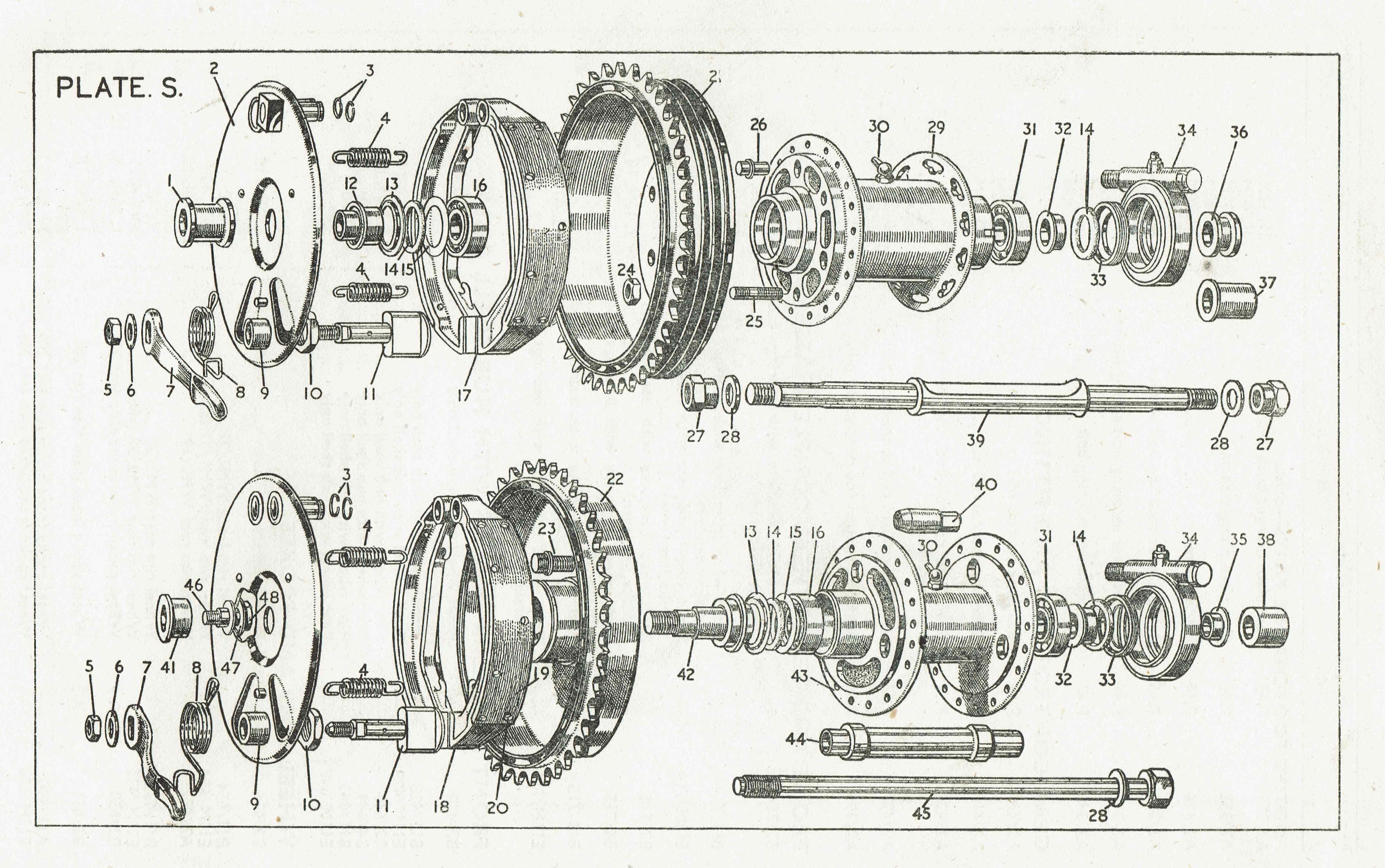

I am that Surrey member that recently had to rebuilt the rear wheel spindle assembly. My experience is that you need to be prepared to fit and fettle until the right adjustment is achieved for your bike. I discovered my bike had some home made spacers. What I did discover was that all the parts are available from a number of different sources, but they didn't all fit exactly. The top drawing on the link below was correct for me.
Andover Norton Parts Drawings - Andover Norton Factory Parts - Commando Parts

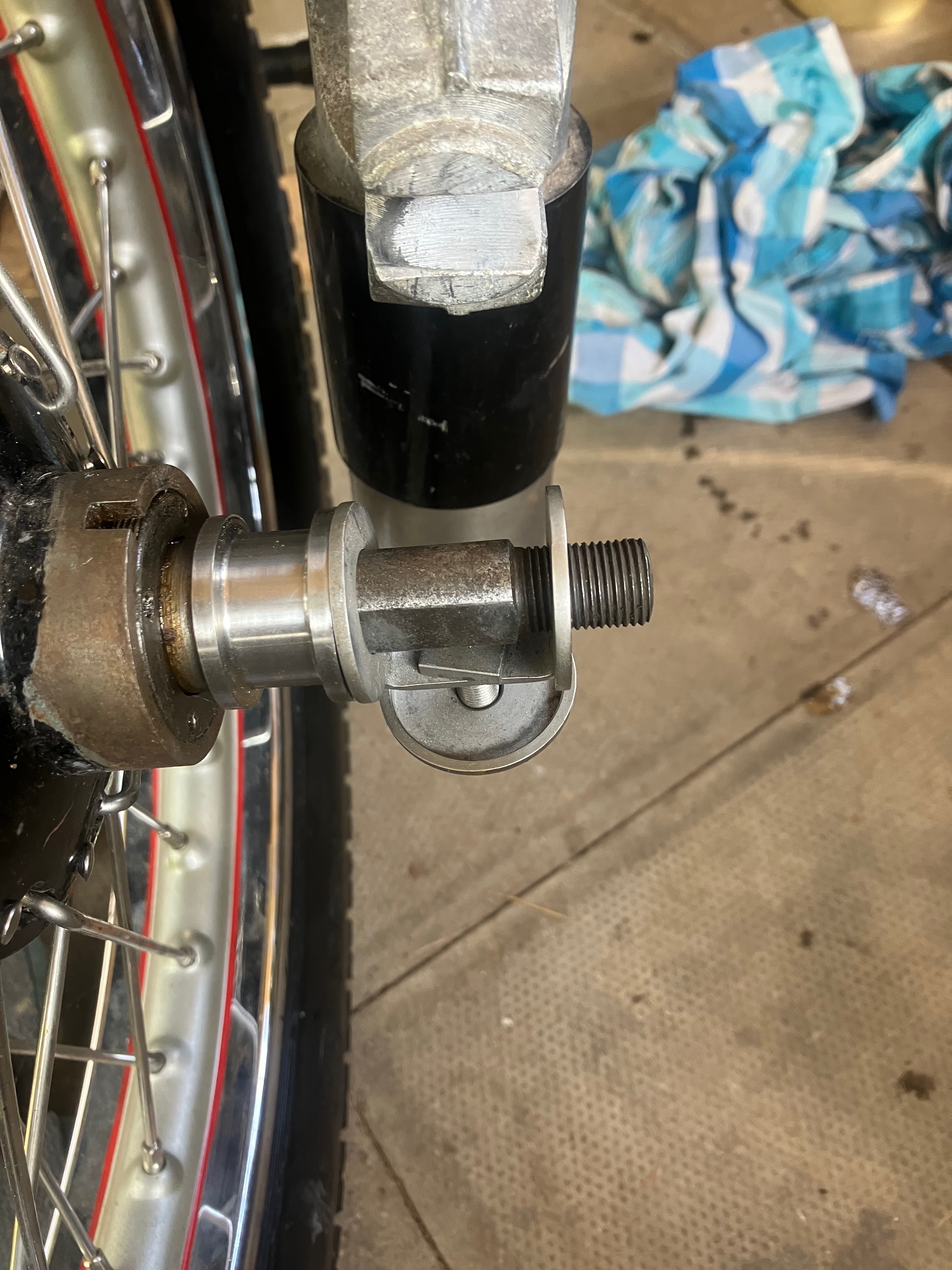

I replaced nearly all of my spacers and both wheel bearings and it still didn't fit correctly. The speedo drive tangs didn't even engage. So needed to shorten the spacer so the speedo drive engaged but didn't rub internally against the spacer. Also and importantly, I was advised that on the ends of the spindle thick central section which have a radius at their root need to have mating spacers fitted that have the correct mating radius. I had to fit a washer on the sprocket side and I machined the radius onto the washer I.D. to suit. When you assembly the wheel there are a number of key things to check.

1) Tighten up the speedo drive side bearing lock ring using a suitable pin spanner.
2) Keep the cut outs in the plunger shocks parallel as they can rotate.
3) When the brake assembly is fitted, make sure it doesn't rub internally.
4) Make sure the chain doesn't rub on the inner face of the oil bath.
I had to machine 2 spacers to get the correct fit and I had to fit a 1mm shim to achieve the right fit. This required enlarging the ID on the shim which machined easily.
You are looking to be able to tighten the spindle nuts without pulling the shock together and causing distortion.

These are the parts I purchased:

Cost      P/No       Description & Company

£5.94  06.5542  A2/435 Bearing 17 x 40 x 12mm Rear wheel speedo drive side (S31) Andover Norton International Ltd

£1.97  06.7614 2 off A2/437 Felt Seal Washer (S14) Andover Norton International Ltd

£0.85 06.7640  C2/687 Tab Washer Andover Norton International Ltd

£5.22 19714  A2/439 Hub bearing felt washer steel cup brake side (S13) NOC

£7.14  B4/661  Distance piece: Rear wheel spindle : Left hand side (S12) NOC

£1.20 067616  A2/438 Wheel pen steel washer (S15) NOC

£10.80 17721  A2/436 Wheel bearing : Rubber sealed type LH Sprocket side (S16) NOC

£5.94  A2/441  Distance piece : Rear wheel : Inside speedo drive (S32) NOC

£6.60  B4/461  Distance piece : Rear wheel spindle : Right hand side (Model 30  & 40) S36 NOC

£3.19  224401347024  2 off 1mm Shim. 20mm ID. 32mm OD. DN988 Moakes Trading

I hope this is helpful.

Cheers

John

.......sent to me when mine were missing:

Open image in new tab and enlarge to see better.

Very good. What a fantastic response ,  this is why the NOC is strong.

I'd say my plunger centre lines are 9"3/4 apart

Here are a few measurements from mine if it can help.
I have 9" spacing between plungers but have different space lengths from Michael's.
I also have two spare RH plunger slides and measured their widths
Sorry, I can't manage to download photos
Widths are :
Slides 1.125" and 1.124"

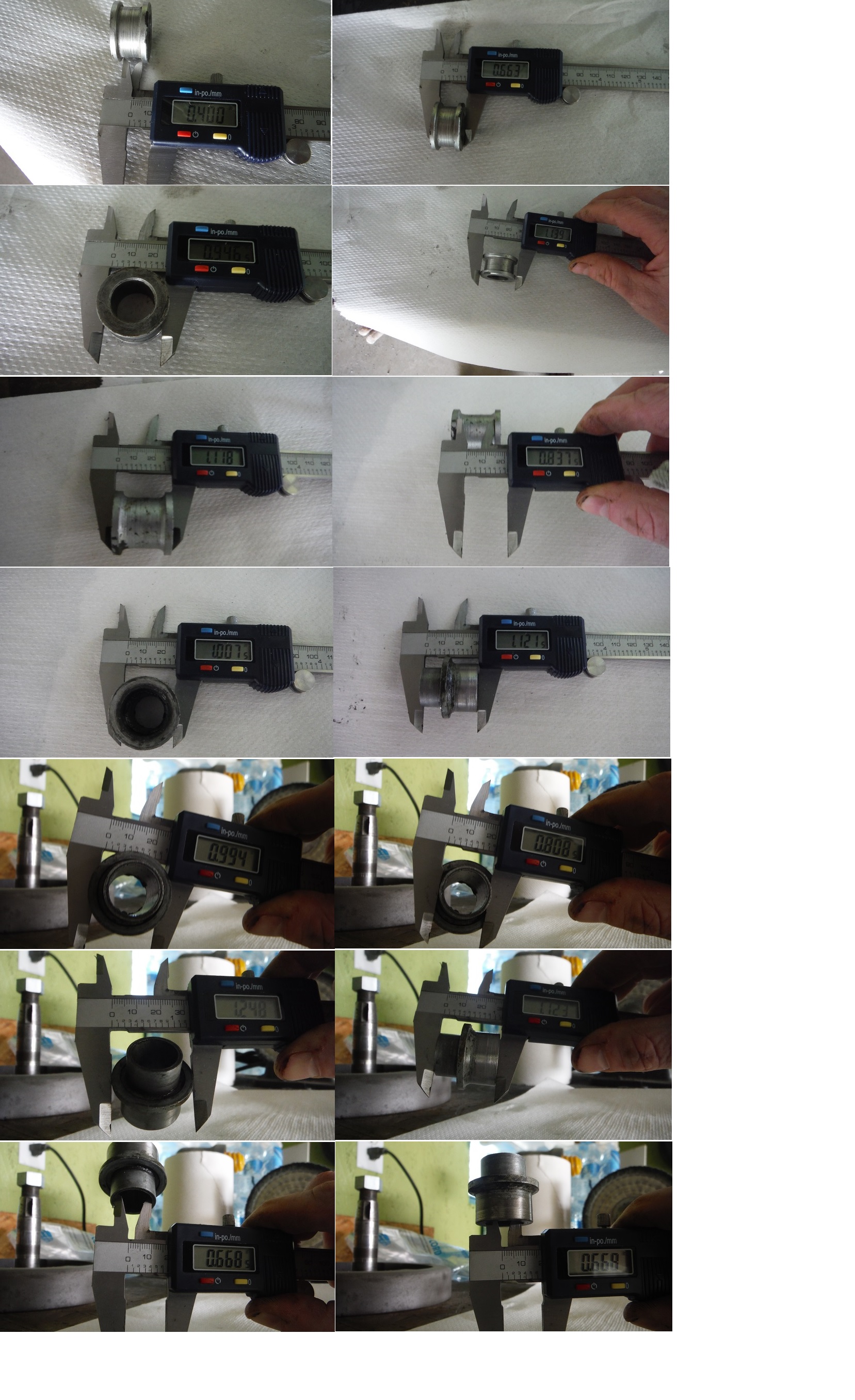

Spacers are 1.003" and 0,779"
