Hi. I have three cylinder heads for my 1960 Dominator 99. I’m going to use the best one of the three. I’m trying to work out the model type it originally came from and the model year so that I know which exhaust downpipes to buy. The head is a single carb type (normal orientation, not downdraft). On the underside of the bottom fin is the stamping ‘S.S’. That makes me wonder if it’s an early 99SS head. The part number cast into the top of the head is the ‘usual’ 22707, however there is no letter after the number, so I can’t work out what year it could be.
Any help in solving this riddle would be gratefully accepted.
Thanks
Regards
Tony
If it has the milled off…
- Log in to post comments
Thanks Robert. Yes it has…
Thanks Robert. Yes it has got extra vertical fins above the plug holes. Any idea what exhaust pipes I should be looking for? Are there different ones for different cylinder heads made during the 60s?
Regards
Tony
- Log in to post comments
Dating
22707 can be either pre-1960 for the standard 77,88 & 99 head or post-1960 for the SS types. They all had the cross-hatching between the rocker spindle plates.
The same casting number was used for two completely different engine types. The 99SS is the exception to the rule. This used a 22707 early head casting for a post-1960 bike. Consequently it needed a special twin carb mounting block.

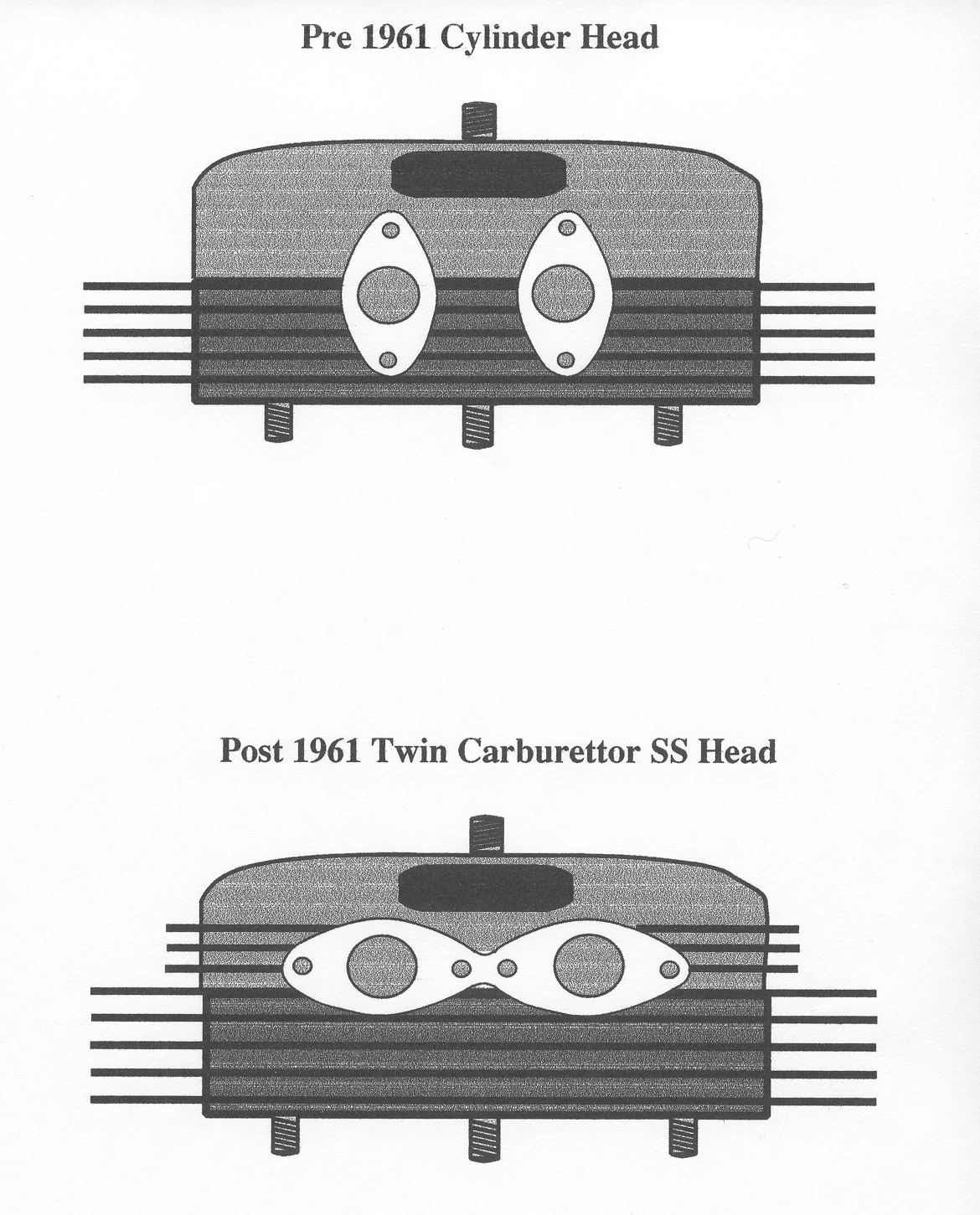

Check the inlet end and refer to the attached drawing. The carb mountings are the clue. Apart from the 99SS all the SS heads will need the wider splayed exhausts.
- Log in to post comments
Thanks Philip. I’ve got the…
Thanks Philip. I’ve got the head with the vertical carb studs, so I guess it’s pre-61. As the head is stamped ‘S.S’ and it has the pre-61 carb stud arrangement, could it be a very early SS? (I’m not sure what year the SS bike’s were first produced). Do you know any way of identifying whether a head has splayed exhaust ports or ‘ordinary’ ones? Is there a measurement between port centres that identifies one from the other?
Thanks again
Tony
- Log in to post comments
88SS/136 heads
Check here:
http://atlanticgreen.com/nhth.htm
Research on the SS stampings so far, has shown on barrels, that the push rod tunnels were slightly enlarged to accomodate the SS cam and due to the extra lift and therefore exhaust rocker arm swing.The exhaust push rod swung forward and would rub the barrel tunnel forward edge. The SS barrels are machined a bit on the front exhaust side in both push rod tunnels. It is quite possible the 61/62 99SS using the 88SS/136 head , without the down draft head, also needed the clearance machining in the head for the SS cam push rods as well the 61 88SS and was so marked SS. 88SS/136 are 20 degree exhaust port heads
The extra intake SS cam lift did not seem to cause a interferance problem in the intake tunnels.
. For 62 the S650/136 head was used on the 88SS and 650SSthese are 40 degree exhaust port heads shown on right. 20 degree port 88ss/136 head used 61 88SS and 61/62 99SS shown on left
- Log in to post comments
In Tony's first post he…
In Tony's first post he seems quite clear on the diference between downdraught and non downdraught heads , so the above information (although of interest) is probably over complicating his issue. It would appear that he has a selection of pre -downdraught heads .Perhaps he could clarify this?. . With regard to exhaust pipes I have "Norton Pipes " that don't fit any known Norton! so he needs to be carefull. Even when they do "FIT" the shape and lack of kick up often spoils the line of the bike. I believe that pre -downdraught the ex port angles are all the same, although the nice continually curved header is rarely seen now. Norton used to specify different pipes for a 99 and 88, due to the different cylinder height , not seen now.
- Log in to post comments
Exhaust Ports

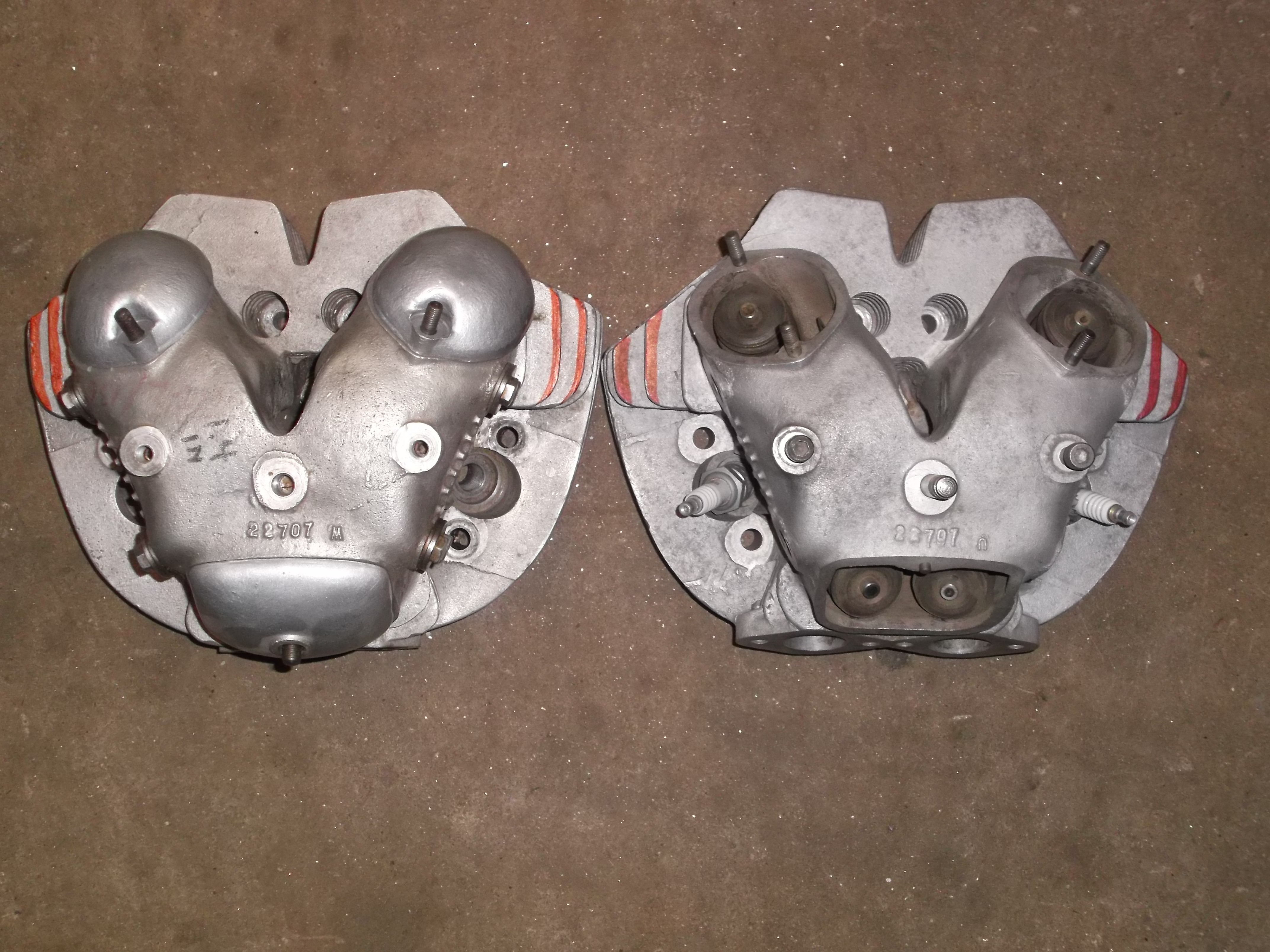

Dave's excellent photo shows a number of key points that help to distinguish the standard head from the SS version. The left hand head is the Standard pre- 1961 77,88, 99 or possibly 99SS version. It can be identified by having vertical carb manifold inlet mountings at the back and extra finning at the front where the exhaust ports face near forward.
The right side head is the SS (Downdraft) version. This has different castings, at the back, for two horizontally mounted carbs. Also there is a big change at the front where both exhaust ports have been cut back at a much steeper splayed angle. 40* each compared to the standard head's 20*. This is why the SS exhaust pipes will not fit on a standard pre-1961 cylinder head.

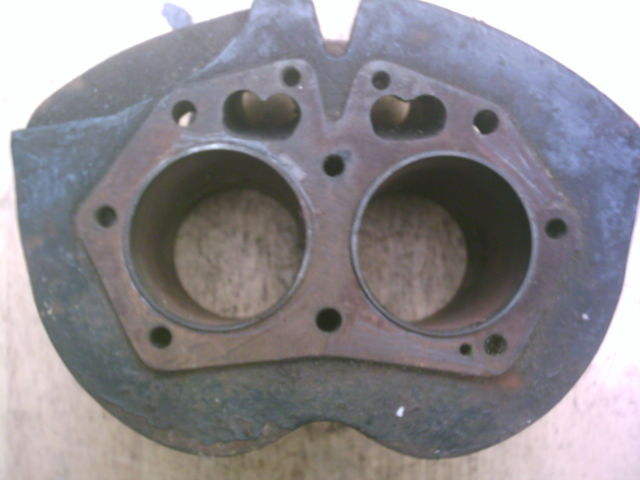

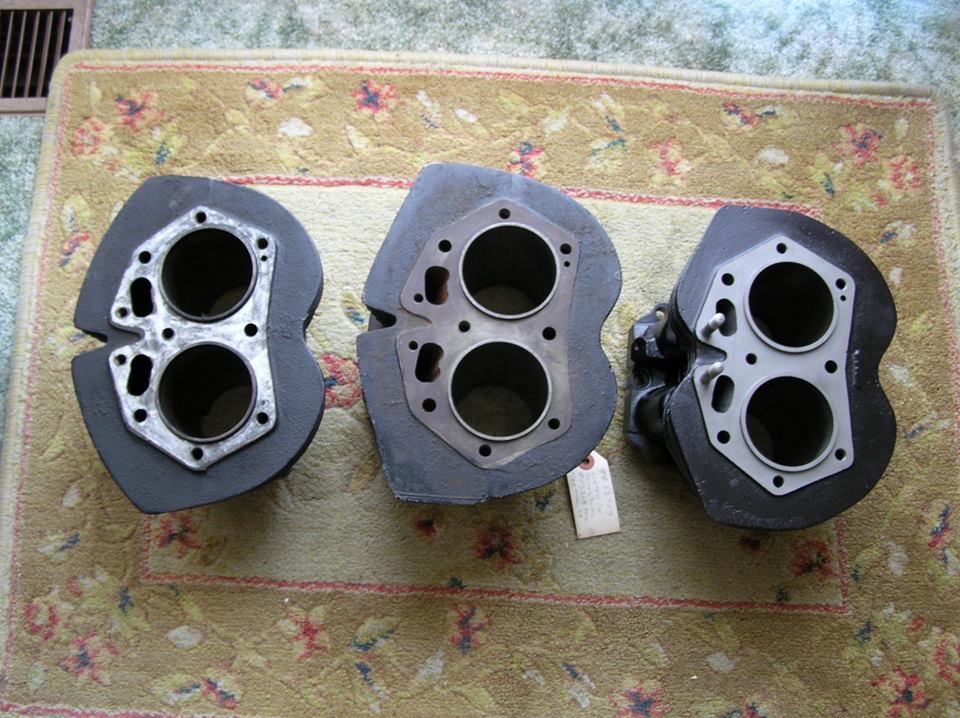

Also just about noticeable in the photo.... the SS head is slightly wider near the exhaust ports. The barrels of all SS barrels were also widened to match this and consequently have pointy corners each side at the front. They also all had the widened pushrod tunnels mentioned above; though sometimes the maching of them was so poor the pushrods rubbed anyway. When the Commando arrived on the scene 6 years later their barrels reverted to the narrow style which is one way of telling Commando barrels from the Atlas version.
Proper 99SS heads were supposed to have the inlet porting machined and polished at the factory along with a polished crankshaft and conrods. Such components were generally stamped SS to ID them. The problem being that anyone can polish and stamp these parts and then claim them as genuine factory SS chunks.
- Log in to post comments
Looking at the SS 99 barrel…
Looking at the SS 99 barrel with the bust fin , I would think the head gasket could get a bit compromised by the reduced area in front of the tunnels. Think I will stick to the std cam and pushrods. My head gasket on the 99 has seeped a little oil for 25 years but has otherwise held up fine. The std motor (650 pistons) is fast, reliable,, economical, and idles really slowly . Its a mistake to Hop up these old warriors. I have had some very exotic speedy machines but the 99 will always be my favourite go to bike. Well worth taking the time to get them properly timed and carb set up. I have a light clutch, easy neutral selection,and no oil drips under the bike, its all possible with std stuff and fetling.
- Log in to post comments
David, thank you so much for…
David, thank you so much for that information and especially the photo. As they say, ‘a picture is worth a thousand words’.
Thanks again.
Tony
- Log in to post comments
Hi Philip, Thank you for…
Hi Philip,
Thank you for adding a few more pieces to my incomplete jigsaw puzzle.
After studying everyones great photos I’m pretty sure that I have the correct TYPE of head for my engine - but I won’t know for sure until I get it back from the vapour blaster and do a close-up check.
In your reply you said,
“Dave's excellent photo shows a number of key points that help to distinguish the standard head from the SS version. The left hand head is the Standard pre- 1961 77,88, 99 or possibly 99SS version.”
So does that mean something different happened to the 600 heads for 1961 onwards? Most importantly for me, did the exhaust port angle change after 1960 - i.e. did it go from 20 to 40 degrees? I just want to check because I’d rather get the correct pipes to start with then if they don’t fit I’ll know it’s not because I’ve got ones for ‘the other’ exhaust port angle.
Regards
Tony
- Log in to post comments
All 99 heads will have the…
All 99 heads will have the same port angle , The wider 40 degrees came with the downdraught head as fitted to the 650 SS, later 88ss and mercury. A very few late 99SS produced at the end of the run are said to have been fitted with the DD head as stocks ran out. Never seen one .If you are near you can try my spare new pipes, I will never use them,prefer Siamese for the sound ,extra midrange.light weight and ease of access to primary/rear chain.
- Log in to post comments
Hi David. Thanks for the…
Hi David. Thanks for the link to the Atlantic Green site - absolutely amazing amount of info there. Tony
- Log in to post comments
Hi Robert. Thanks for all…
Hi Robert. Thanks for all your help. I’m now 99% sure I’ve got the correct head for my 99. That’s a big relief. Someone earlier said that the 650SS heads had polished inlet ports - mine are like mirrors so I guess somebody ‘worked’ on them to try and find a bit more oomph from the standard 99!
In one of my other heads, the rocker arms have been highly polished - they also look like they’re made of bronze. Were they made of bronze as standard or have I got some exotic after-market parts in that head? The inlet ports are standard size and haven’t been polished. What’s the point of polishing rocker arms, is it just to lose a couple of grams?
Thanks again
Rwgards
Tony
- Log in to post comments
Never heard of bronze…
Never heard of bronze rockers. Dunstall used to supply rockers that were much lightened and polished to allow higher revs and reduce the chance of fatigue cracks. But all a bit pointless with the 99 which is now too long in the tooth for "hopping up" .Enjoy it for what it is, A very competent classic bike. If you want to go silly fast, pull wheelies and overdose on adrenaline I will sell you my VTR 1000.for peanuts!. If I carry on riding it my licence won't last.
- Log in to post comments
If it has the milled off vertical fins above the plug holes then it will be fine and the correct style, What the SS markings indicate I can't be sure, Perhaps polished ports or possibly stronger valve springs . Won't make any real difference .
