Does anyone have a blow up of how all the parts go for reassembling the wheels ? I.e. Spacers etc . Same goes for the front end . Thanks Guy
Scan is at http://www.ians…
Scan is at http://www.iansoady.org.uk/pdf%20documents/hubs.pdf
Unfortunately there is no key for the numbered items.....
Front and rear hubs are the same for the 1936 model.
Is it the same as the WD (…
Is it the same as the WD (1937 spec) model? If so the manual for those has an index with the exploded view.
Hello Guy, I have both a 1…
Hello Guy,

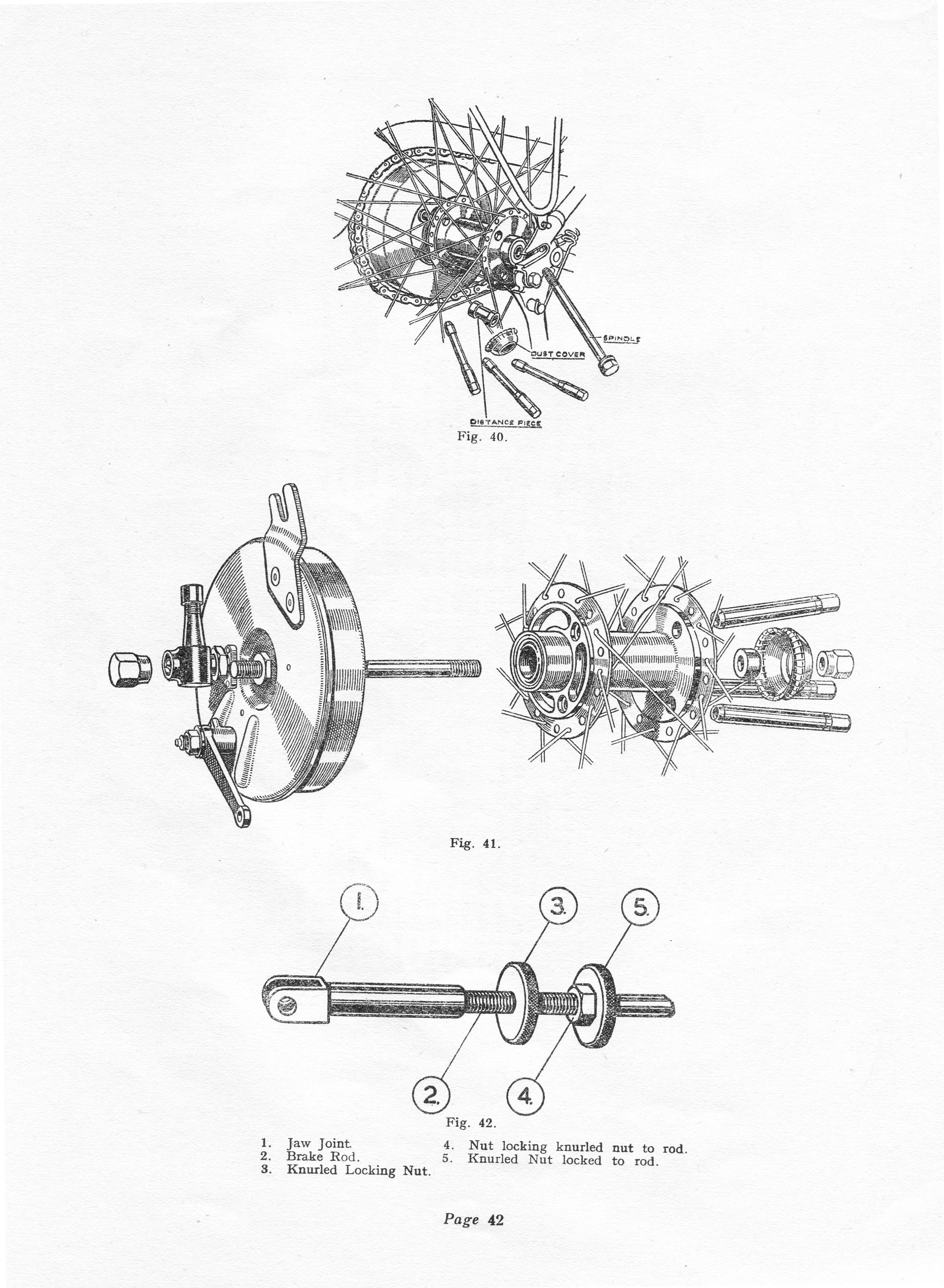

I have both a 1936 16H and a 1941WD16H and apart from the colour both have the same hubs. The images below should show the info you request.
Hope this helps.
Attachments Front%20Hub2.jpg Hubs.jpg technical1-Previously Pete McDermott…
Previously Pete McDermott wrote:
Hello Guy,
I have both a 1936 16H and a 1941WD16H and apart from the colour both have the same hubs. The images below should show the info you request.
Hope this helps.
Thank you !!!
I have a copy of the Edgar Franks book which will have diagrams (although they won't be detailed). I can scan and pdf them for you if you like.
