Stuck Sump Plug

Forums

Hello!  I'm so excited to get my '71 Norton Commando back in action.  A couple years ago I made the mistake of leaving the fuel petcocks open, and gas seeped into the oil.  Fine, just drain it and flush and refill....but then the sump plug didn't come out.

So it sat until someone told me about a fluid extractor.  So I extracted what I could, started the engine, turned it off and extracted more and slowly replaced the oil that way.

With the engine hot, I tried icing the plug to get it to shrink....no joy.  Another guy suggested heating the case with mapp gas, but that's fairly terrifying to me.  Didn't help that he added "have a fire extinguisher handy" but I appreciated the spirit.  By the way, to pull this plug I'm using the dedicated "Norton Sump Wrench" that fits under the frame cross bar.  One was bent trying to free this plug, so not exactly high quality tool steel there.

Any other ideas or thoughts?  I don't have the equipment to pull the engine and get a proper socket on there.



Thank you!

--Alec

Permalink

All you need is a very large box spanner, bear in mind this is Whitworth. Chances are somebody has a large 1/2 drive socket or even a 3/4 drive socket! (used on trucks a while back). You do NOT need to take the engine out, in fact having it in the bike should hold it steady enough for this job.

Permalink

Ahh, I thought a socket didn't fit under the frame's cross bar.  No luck finding 7/8 whitworth here in the states.  Could I get away with 38mm hex or will that strip the bolt?

Encouraged!

Permalink

That is the correct size in the US of A, Peter. AF..

Other translations are:

Pet cock = Petrol tap.  (1/4 BSP in this case)  British Standard Pipe.

Gas = petrol. (Use Marine grade in the US of A = E0)

Happy riding while you can.

Permalink

Commando sump plugs  and sump magnetic drain plugs as now supplied certainly dont fit any of my Dominator whitworth tools . So likely to be AF .  I resized them for my Dommy so i dont have to carry AF as well as whitworth.

Permalink

You can also get it off with a suitable sized pipe wrench (plumber's tool). Take care not to scuff the crankcases. And I know folks here will be horrified but that's what I first used on my '70 Commando back in the day; that too had the earlier frame with the cross tube towards the back of the engine.

Permalink

I was hoping somebody didn't mention that way of getting the sump plug out.... the pipe wrench works fine, careful to not bure the nut. I am not sure where you are Robert in this post but the large brass nut under Dommie/SS/Atlas/Early commando must be Whitworth. But going back to the original problem, it does need a decent fit socket/box spanner (somebody hold the bike and a 3ft bar!) As for 38mm socket, yes this might work. If the socket is a snug fit on the drain nut then 'go for it' I can't see how any thread will strip? A new nut is just buy and fit, a stripped thread in the crank case is an 'OH sh1t moment' Have fun.

Permalink

take the head steady off, remove the front engine mounting off . raise the rear wheel off the ground. With a bottle jack and a block of wood . jack up the engine. this will allow sump plug to tilt forward and a socket a good if . I DID THIS LAST WEEK

Permalink

Sump plugs can be heli coiled. (Like most threads)

Drain Fuel tank and half the oil tank and lay the bike over onto some cushions etc.

Perfect access. Been there and done it.

Permalink

Are you trying to scare the poor boy? Stripped threads, removing Isolastic mounts? It's just a bit tight, get a large pipe wrench with an old fork stanchion (or similar) over the handle, remember to turn it the right way (RH thread) and it'll come off clean and easy. No damage, no problem. This is a routine service operation, you don't have to take the bike to bits!

Permalink

If people did not unecessarily dismantle their bikes ,where would we find those lovely basket cases ?  Dont be a spoil sport Stan !!.

Permalink

I have a set of three Ridgid pipe wrenches, very useful in difficult bike or car related problems but easy to damage surfaces.

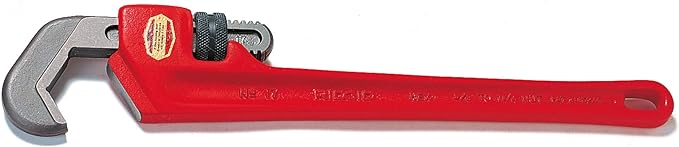

Adjustable flat jaw Ridgid Hex Wrench as in photo is better, was excellent in the 70s for the sump plug and fork top nuts, wish I still had it. Eddie's socket solution, WD40 and a heat gun my modern choice on tight threads.

Permalink

WD40? I find that Plus Gas is better and doesn't leave the oil residue which can be a nuisance some time. Do not forget that Alex Simonson is in that large country over the pond! But if he must  buy a 'foreign' bike then he must expect the need for 'foreign' nuts/spanners. Even us who 'nearly know what we are doing, run foul of the Whit/AF/Metric horrors from time to time as any owner of a commando will tell you. It was all a matter of costings at the factory in the 70s.

Permalink

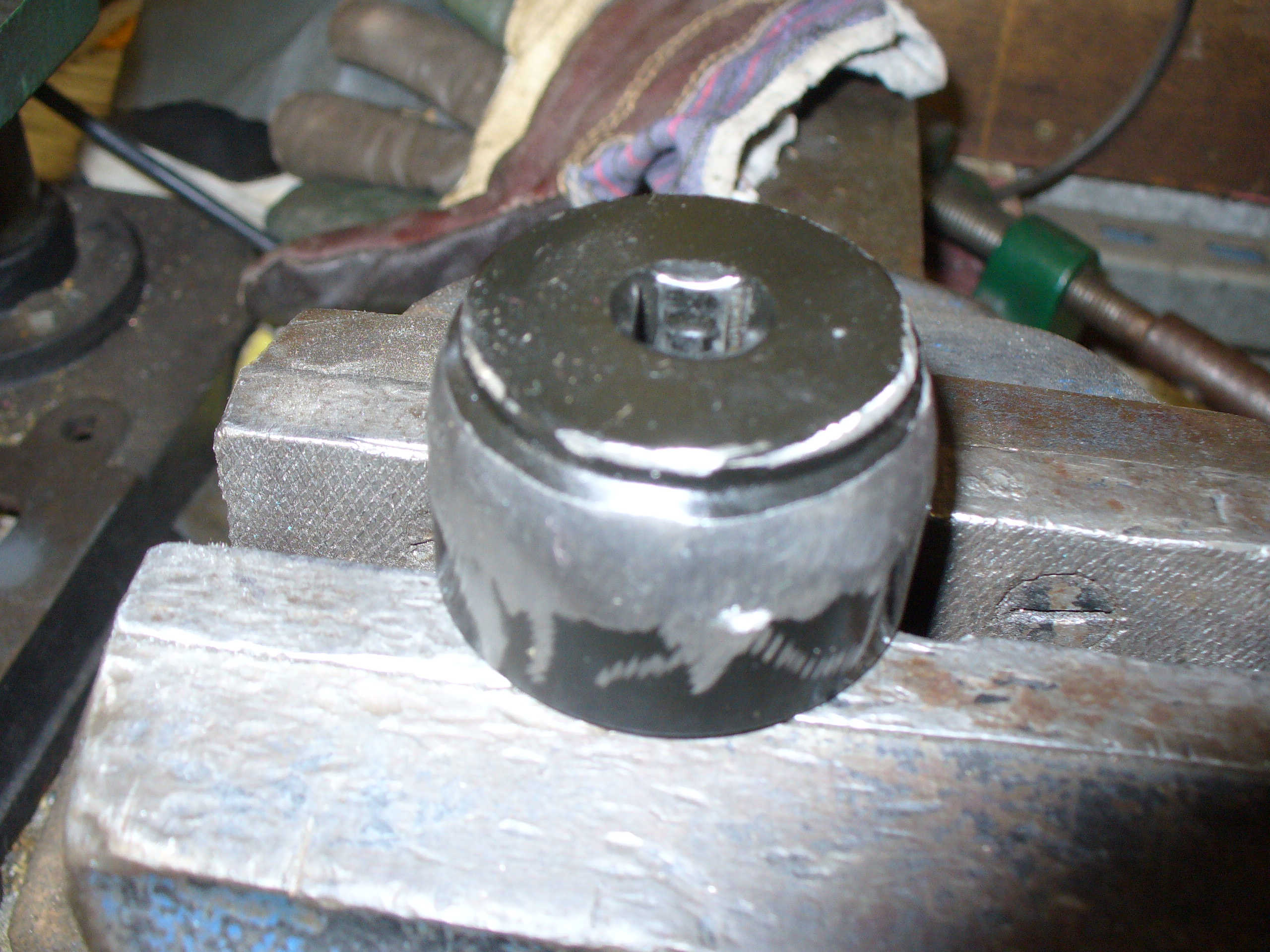

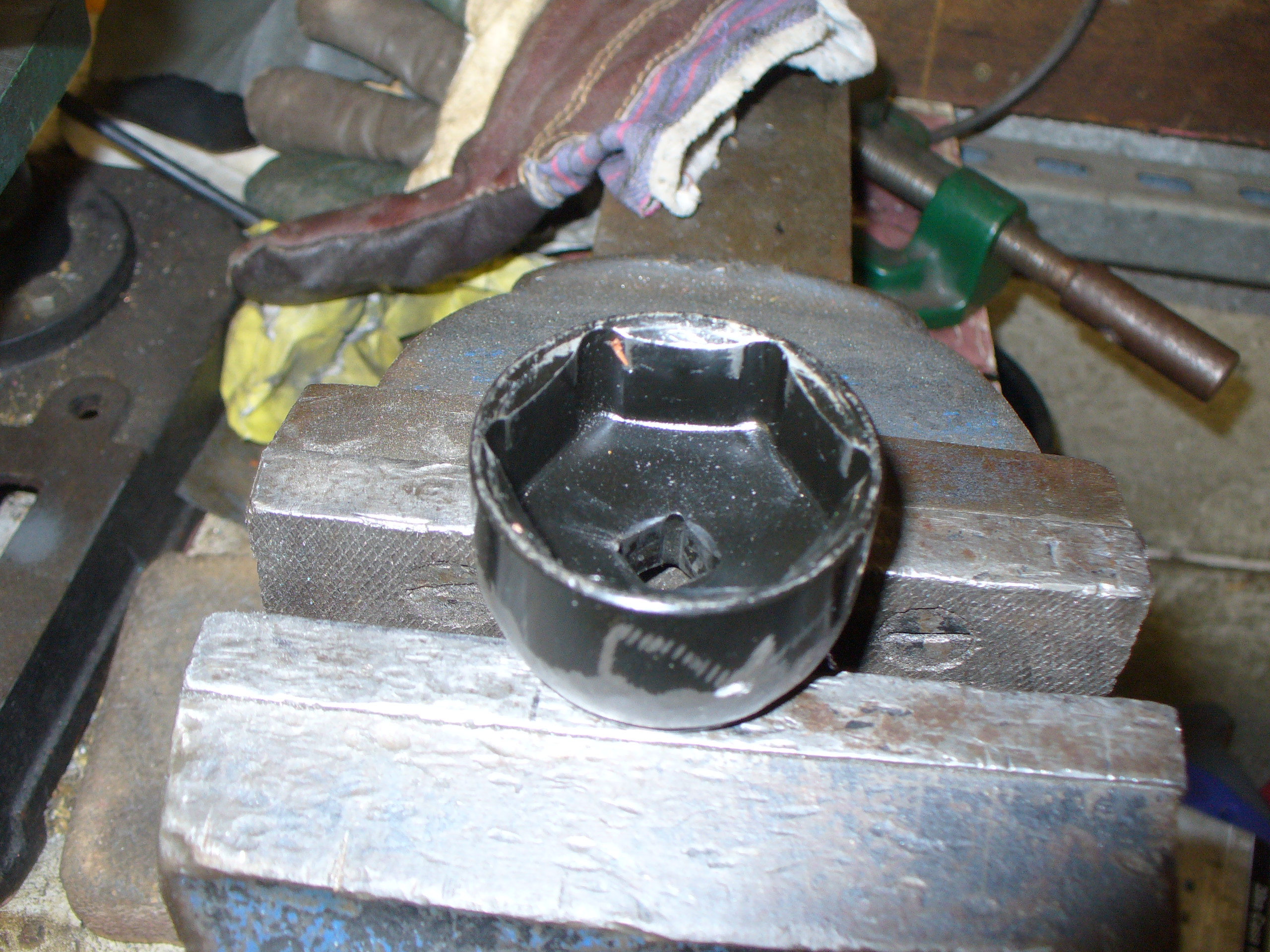

once you have found the right size, as an extra tweak, grind back the face of it if it has rounded entry to the hexagon,  to get a sharper edge.

Permalink

Thanks Team!  It's still stuck.  That rigid pipe wrench doesn't look like it would fit under the cross bar, but the leverage looks great! I was encouraged by Eddie's suggestion of a ground down socket, but I haven't ground it enough yet to clear.  (But did cut it enough to make it shallow).  I also found a 1.5" wrench but only the open end fit.  ...but not well enough and I think I rounded one of the hex corners.  (New filter nut is waiting though).  There's a guy here in Sonoma County I can take it to and at this point he might be my best bet (yes, I'm feeling defeated!) While the bike does run (first kick!) I'm still smelling some gas when I open the chain inspection port.  New SAE 90 GL4 oil on the way.  I don't love the idea of loosening that center bolt to take the cover fully off, but sounds like that's how one fully clears it. Some photos and videos here if link posting works:  https://photos.app.goo.gl/45fkF7yT4fbTf4Ph8 Anyone know which PCV Reed valve I should consider and what port to install it on? Cheers! --Alec
Permalink

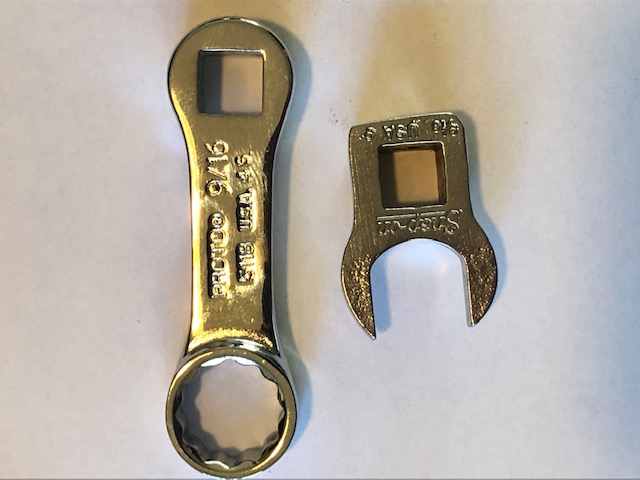

There are variations of below available......worth considering as options if correct size.  Tools

If the nut corners are now rounded off another option is to buy a cheap set of reverse thread extractors, drill a hole in the nut, then screw the reverse thread to get the nut out. You may need T piece to attach to the bolt extractor that you can tap lightly with a hammer to hopefully remove the bolt. Maybe buy a new bolt before you start the work. I've used this method on other bolts with rounded off corners.
Permalink

... I'd recommend myself. A cheap set is likely to be made of poor quality steel, and they're generally hardened all through making them brittle. You's likely to end up with the remains stuck in the hole. I prefer Al's suggestion of a correctly sized box spanner with a long bar on it.
Permalink

There was the suggestion of a 38mm socket, as the nut is 38mm across. My observation is a snug socket and a 1/2 drive bar. Due to the size and material (Brass?)  of this nut then |I wouldn't even consider a reverse thread extractor, I have had more failures with such extractors than successes. Or a large box spanner, a snug fit should shift and a long bar should shift it.
Permalink

Are there different threads on sump plugs? Have a new non fitting one.
Permalink

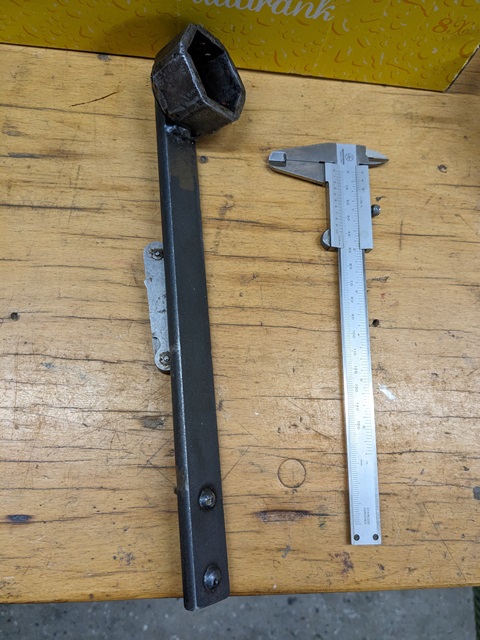

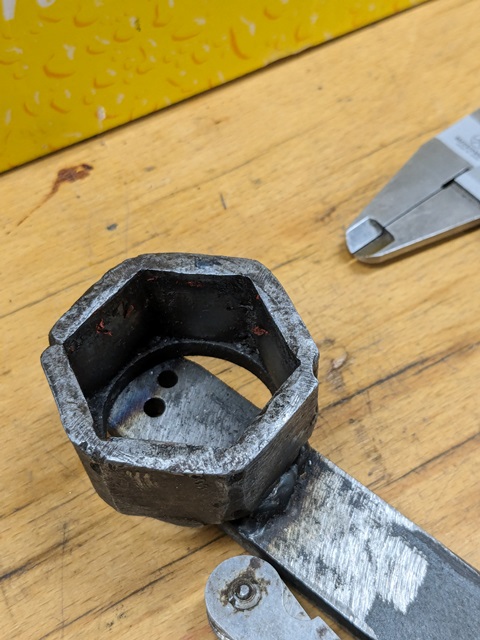

Alexander, if you have access to welding apparatus, this may be a way out. Back in the late seventies, money was tight for me, so I botched up this wrench out of some scrap steel strip and pipe. Still use it. The hexagonal part could have been made a little lower.
1
1
2
2
3
3

Permalink

I like Bennie's suggestion and this is the kind of tool I would have fabricated as an apprentice. Some of the Commando sump plugs were made of steel so I suppose a bar could possibly be welded directly onto this.  I am not so sure that a thread extractor would work on a sump plug. Either Steel or Brass. From past experience of trying to pull out a gearbox drain plug that had welded itself to the casings I would be a little worried about the thread in the case pulling out.  Apparently this was due to the effect that modern synthetic oils sometimes have on Aluminium, Steel and Blass component combinations. Stainless Steel and other metals are equally notorious for such.
Permalink

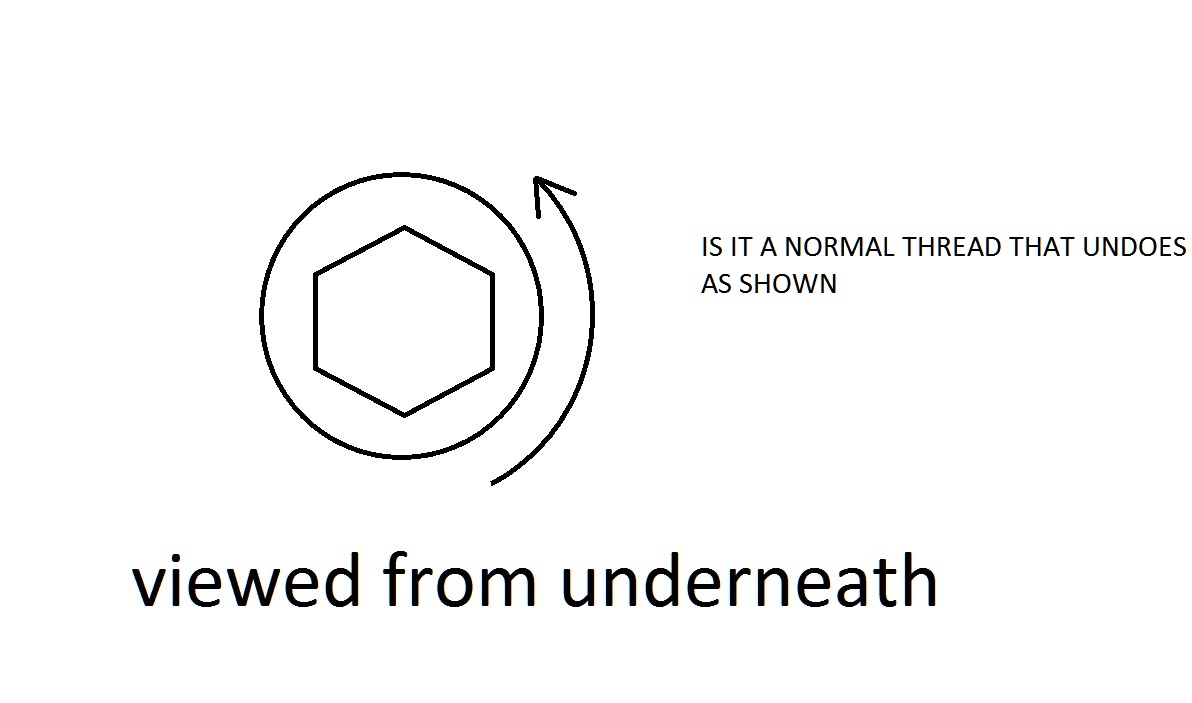

hello,    which way to undo nut.                                                                                                                                                                                                                                                 barry
Attachments
Permalink

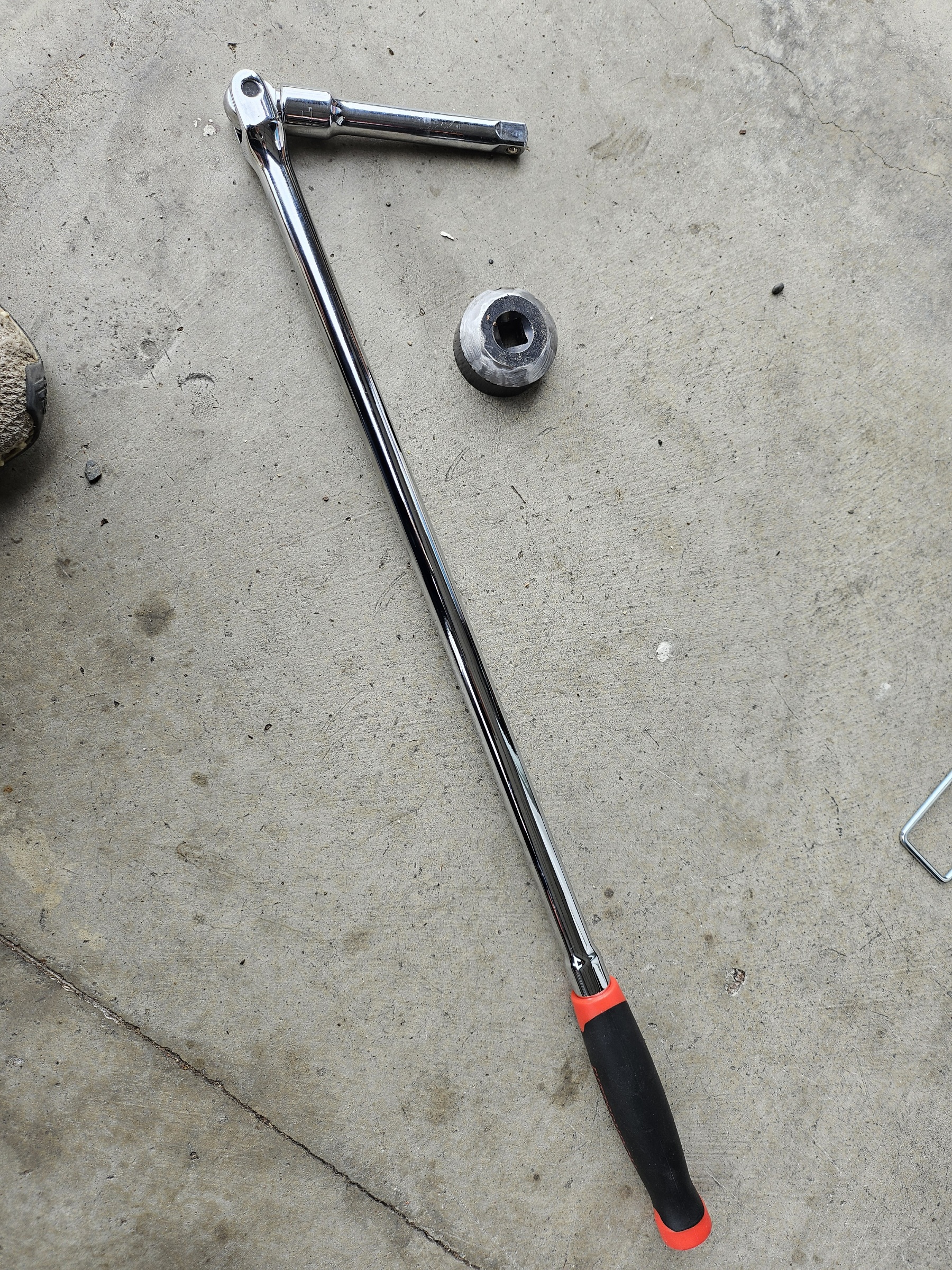

Well, it's off.  I kept at the socket idea from Eddie Cross (thank you!) until it finally fit.  The 1/2" socket wrench I had wasn't enough, so I got a 24" breaker bar and while keeping the bike from turning with one leg, put all I had into it to get this free.  Yikes!  But I'm SO happy and we're onto other things (new post coming). Bennie I was close to jumping on your idea, I had the sawed off socket and I can weld both TIG and MIG, but I don't own a welder (yet).  And Barry, it's definitely good to think about the direction very hard in these situations. The bike actually still has the tool pouch with a bunch of whitworth wrenches, just not this size.  Anyway, thank you all for your suggestions and encouragement; this saga had a happy ending! Cheers, --Alec Final tools
Permalink

well done!   However, that was on much too tight! One thing to learn is : how tight are fastenings required to be: huge variation on Commando.    Also when to use nyloc or equivalent nuts, or the right type of Loctite, or copper washers in this case, or fibre washers elsewhere.    A LOT of people have been there and done it already, which means plenty of experience to lean on, after leaning on the socket bar!!
Permalink

Yes, it was too tight.  I hadn't put it on, and will be in charge of putting everything on here on out!  (I hope) But that reminds me: is there a torque spec list anywhere?  I was thinking about it when I encountered the chaincase center bolt.
Permalink

Section "A" of the Workshop Manual for Norton Commando 750/850, from all good spares outlets. Covers most of the fastners. Doesn't cover the primary case though. I'd use a setting for an ordinary 3/8 unf nut with a spot of threadlocker as back up.
