Hi all,

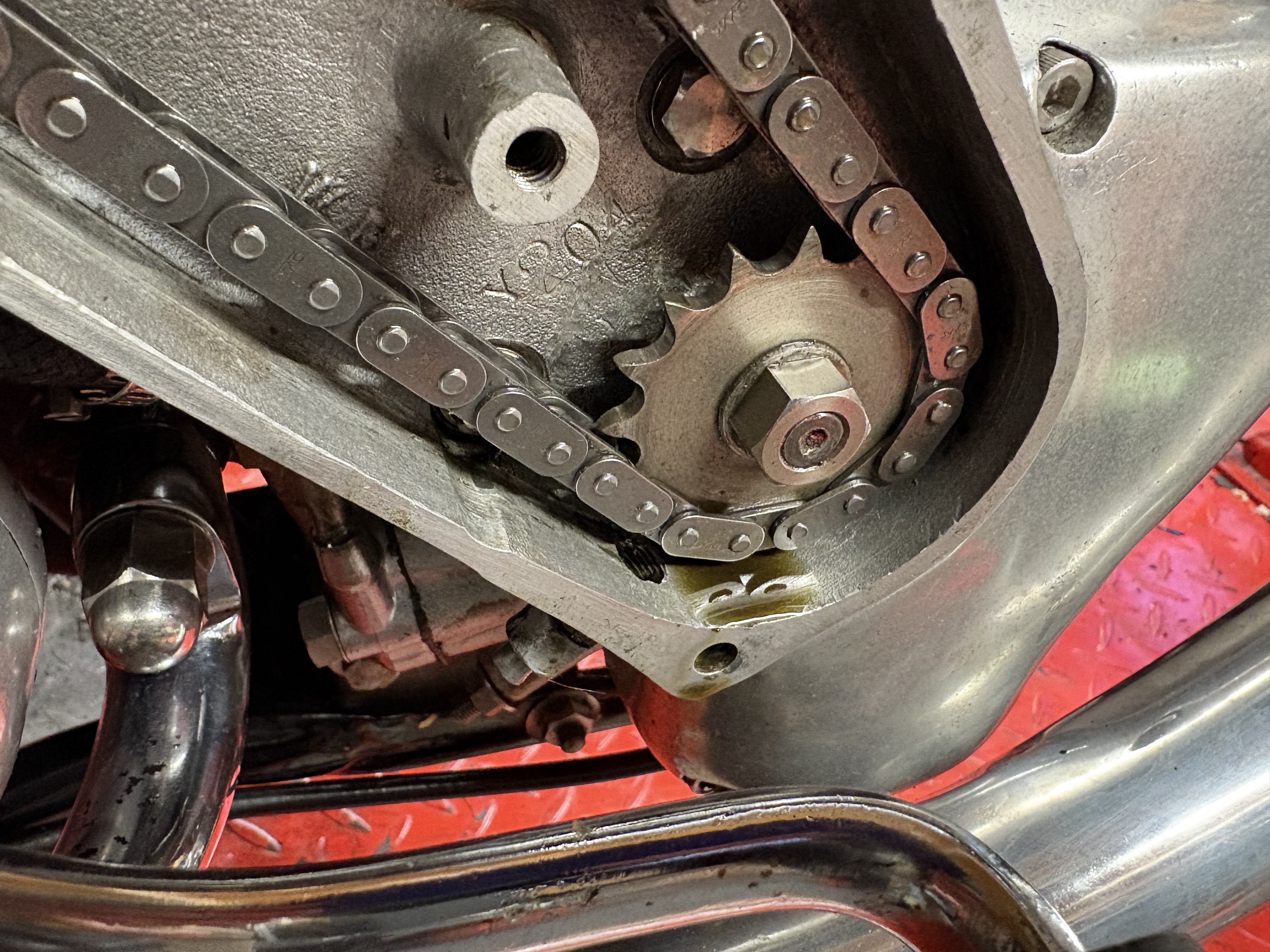

I have an oil leak on my 1950 ES2. I did mention this in another thread but thought I would start a separate one for this subject. Looking at the magneto chain with the cover off and the engine running it is coming from behind the lower gear? I did notice this before as oil was coming from the breather pipe near the bottom of the mag chain case, but wanted to run the motor with the cover off to see exactly where its coming from. I am guessing there is some kind of seal behind here? or someone mentioned a bush? How do i get that gear off??

Thanks,

Steve.

Permalink

There is no seal, just a close fitting bush. To get to it, the chain and sprocket has to come off, use of a three legged puller here to do that, making sure you don't lose the tiny woodruff key when the sprocket comes off. The timing cover can then be removed, make sure you don't lose the sprung loaded brass quill that feeds oil to the crank.
If you don't want to go that far and the amount of oil leaking is negligible but annoying, just fit the mag chain case with a gasket and sealant so the oil goes down the chaincase breather pipe to a suitable catch bottle.

Permalink

...and you won't be able to remove the bottom sprocket with the magneto chain in place - so you'll need to be prepared to re-set timing.  It will never be as oil tight as a new modern design because they didn't have synthetic rubber garter type oil seals when it was designed.  And the magneto chain likes a bit of oil...


Permalink

The bronze bush behind the lower sprocket has a machined scroll, which doesn't extend to the outside of the bush.  The scroll effectively screws the oil back into the engine, but as things wear more oil escapes to the mag chain casing and causes some leakage when the level builds up to the "overflow" pipe.
I asked an expert machinist (my brother) if he could replicate the scroll in a new bush.  Unfortunately it is technically complicated to re-create the coarse scroll unless you're in the bearing manufacturing industry, especially when it has to stop short at the outer end.
I resorted to making a small catch bottle to stop the bike marking its territory!
