Has anyone experienced any charging problems with the stator on their Alton electric starter..? Mine has been on the commando approximately 8 years and even though low mileage, has failed twice. In both cases one of the two output wires had separated from the coils . First time one of the wires parted approximately 20 cm from the coil and as such was easily repaired . On this recent occasion the same wire parted from the coil base , making it almost impossible to re solder without destroying the shellac insulation. A replacement stator costs £250 .! Can anyone recommend a repairer who might be able to undertake a repair.?
I am happy to look!
- Log in to post comments
Plenty of space around the…
Plenty of space around the stator laminations, should be an easy job to rewind it
Sent you a PM
- Log in to post comments
Stator coil
Hi Alan , thanks for your offer , one of the NOC Yorkshire members who lives not far away has offered to carry out the repair so I should be up and running soon. I have returned my Boyer Branson power box for testing and awaiting their findings . Hopefully it's ok ? Regards. Barry .
- Log in to post comments
Afternoon Barry In a…
Afternoon Barry
In a previous life (read hobby put on hold here) I made and flew radio controlled model aircraft and got to the stage of making our own three phase electric motors for the models. This entailed rewinding CD Rom drive motors and the like, even using the core elements from VHS recorders.
Using a much heavier gauge of wire and the supermagnets then becoming available we were achieving 20 minute run times for a full house aerobatic model.
Earlier than that i rewound a rotor for a Ford Escort windscreen motor back when money was tight.
I still have a box of the insulated wire of all different gauges (modern wire has a plastic type coating, looks like shellac but isn't) Looking at the Alton stator on RGM's website it shouldn't be a difficult job to rewind it.
How did the journey back to Leeds go?
Regards
Peter
- Log in to post comments
Hi Barry, Nice to see you…
Hi Barry,
Nice to see you made it back home, shame we could not fix it at the rally!
My advice if someone is going to fix it for you would be try and keep the solid core wire short and fixed and add tails of a multi core wire onto them.
The issue is with the solid core wires "flapping around" with vibration, at least with a flexible tail it would relieve some of the stress on the wire.
Good luck,
Dave Rood (DoctoR)
- Log in to post comments
Alton Alternator
Hi Barry
Just a (belated) note that I've suffered exactly the same issue twice on my Alton stator. I have managed to fix it but presently own three of the things!
Peter
- Log in to post comments
Hi Peter , sounds like you…
Hi Peter , sounds like you've been having fun! .? I think this is one of the systems Achilles heel's. This together with the Rotor woodruff key being inadequate makes my confidence in the setup quite low.! I'm hopeful mine can be repaired, and if so will look closely at trying minimise any movement on the two output leads almost certainly the cause of the wires breaking. I contacted Alton but have not had a response to date . I was supprised at the mileage I got from my battery on my way home and pleased I fitted a 20 AH . Hopefully no further problems once sorted? Regards Barry
- Log in to post comments
A couple of photos of Barrys…

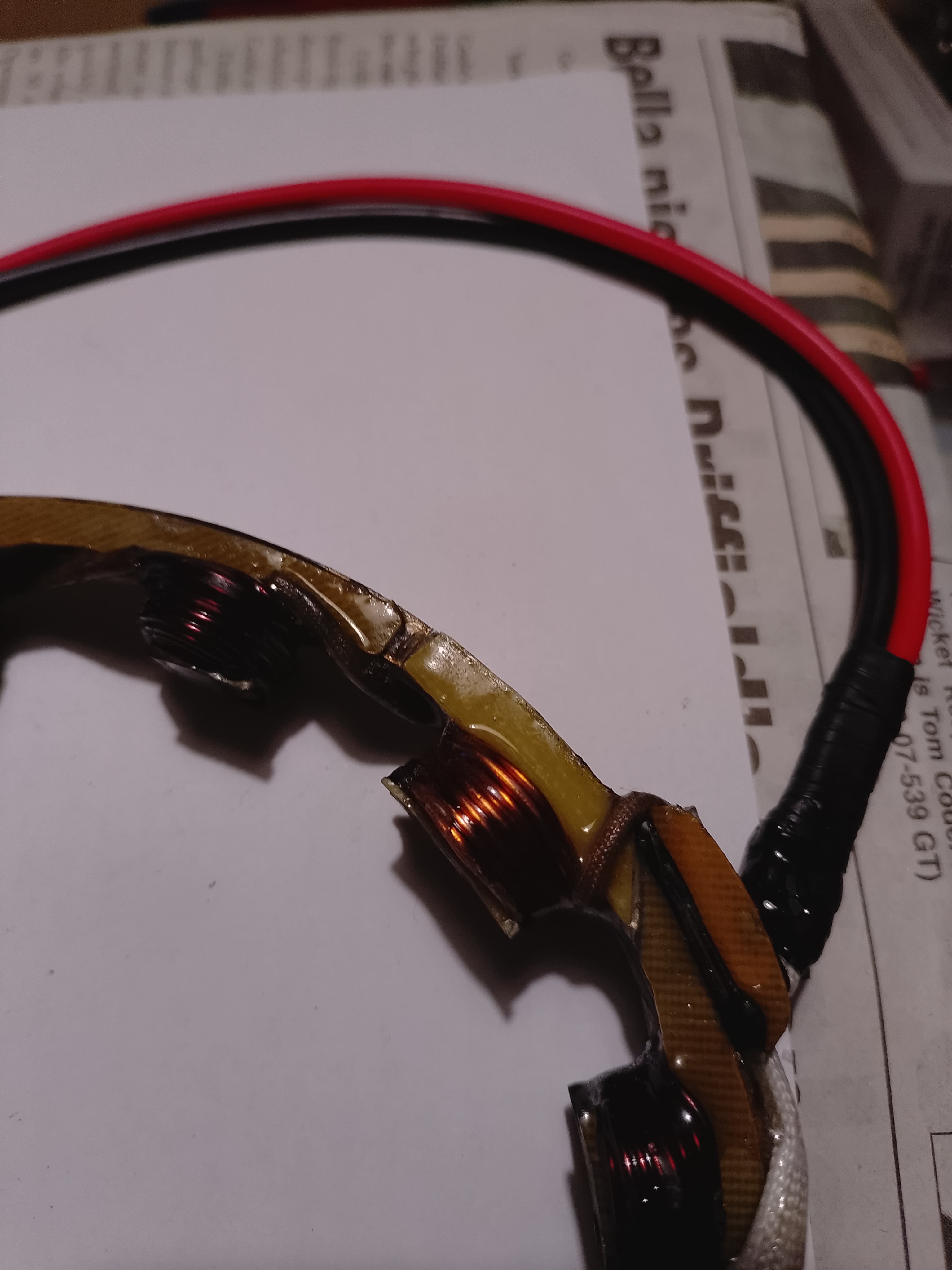

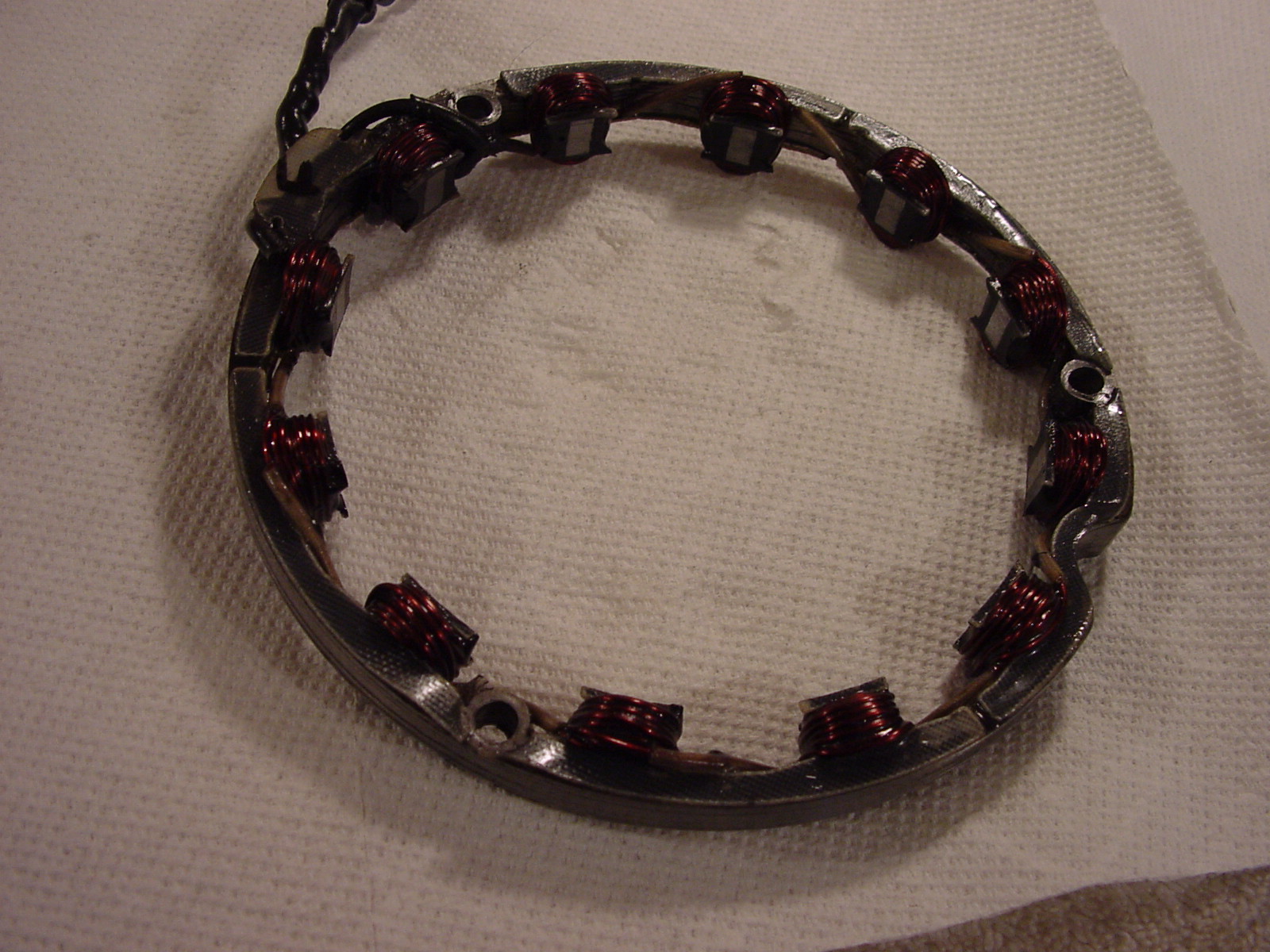

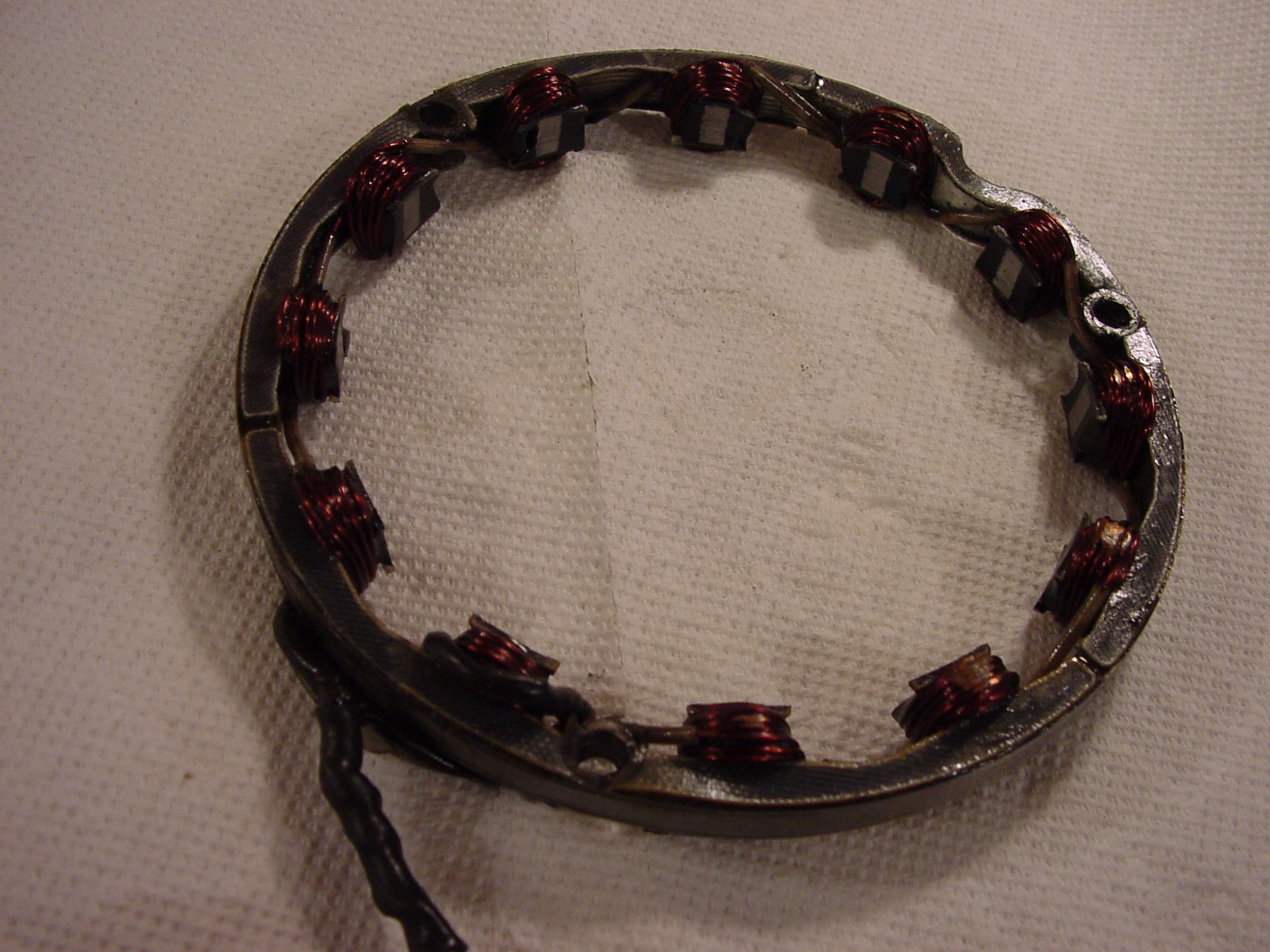

A couple of photos of Barrys repaired stator. Took four attempts to get the procedure nailed. Terminated with silicone flexible leads.
- Log in to post comments
Very nice job, I have…
Very nice job, I have another one that needs repair.The coils were rubbing on something.
- Log in to post comments
Afternoon James What has…
Afternoon James
What has been rubbing on the coils? The starter chain runs very close to the coils and others have increased the space there by putting washers between the stator and its mounting plate.
Some of the insulating laminate has lifted next to the mounting holes, possibly by using a too big a washer under the bolt head that has deformed the laminate.
Sent you a PM
Regards
Peter
- Log in to post comments
Never could figure out what…
Never could figure out what was rubbing, I bought the Alton from a guy in Ireland that posted it here. He ghosted me when asked what happened. The rotor was damaged also. I replaced the 2 pieces with new so I have the damaged parts just lying around .No help from Alton either.
- Log in to post comments
Hi, I hope you don't mind me…
Hi, I hope you don't mind me coming into the conversation but I fear I may have the same problem. I have not stripped anything down yet but if the stator needs rewinding can any of you fine gents tell me what gauge the wire is? Many thanks, Roger.
- Log in to post comments
The wire diameter on Barrys…
The wire diameter on Barrys stator measured up at 1mm or as near as damn it. readily available from RS Supplies.
- Log in to post comments
Alton Stator
Thanks Peter, like Barry I am the proud owner of a previously failed stator so I have one to practice on!
- Log in to post comments
Morning RogerUnwinding the…
Morning Roger

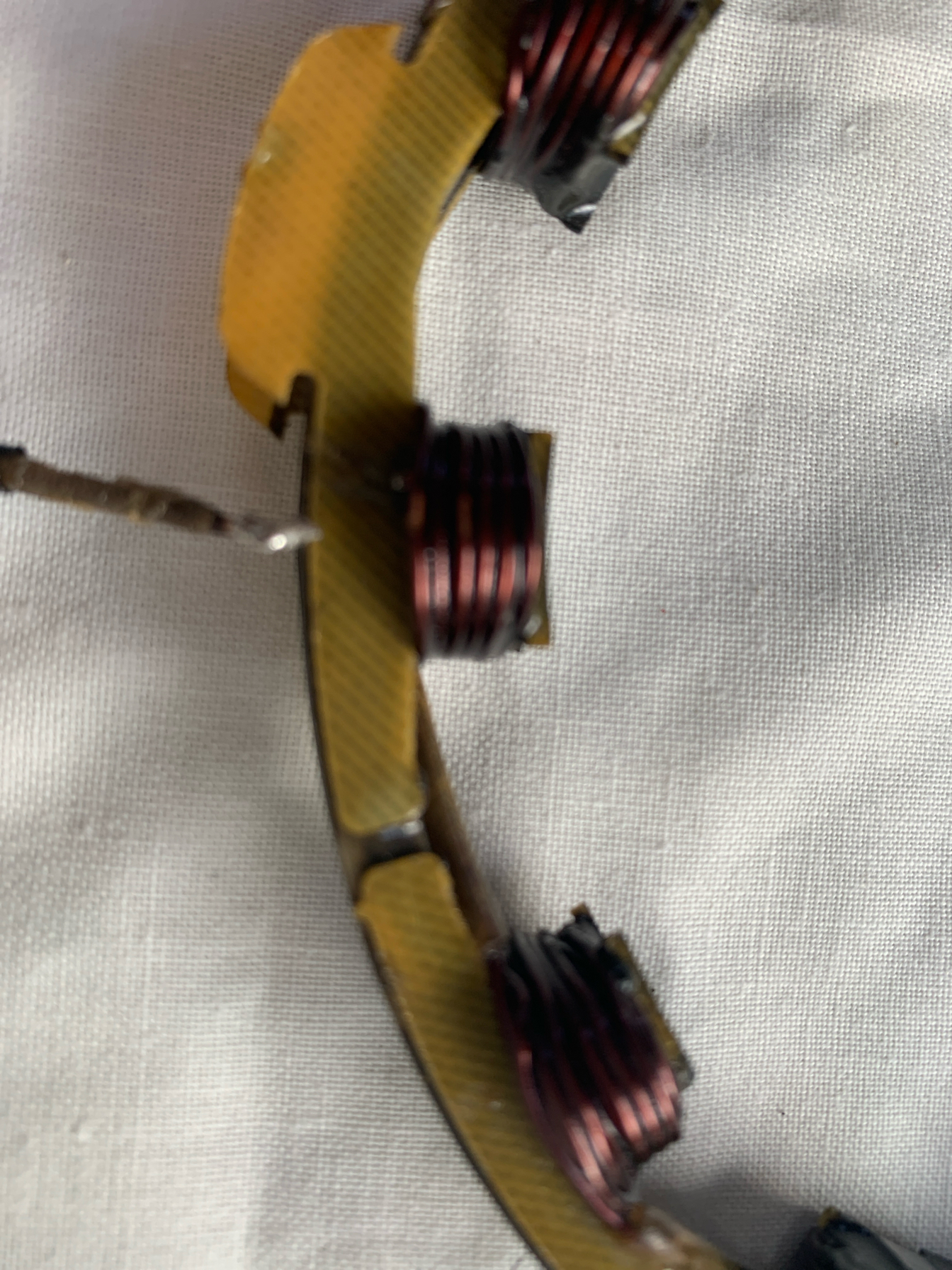

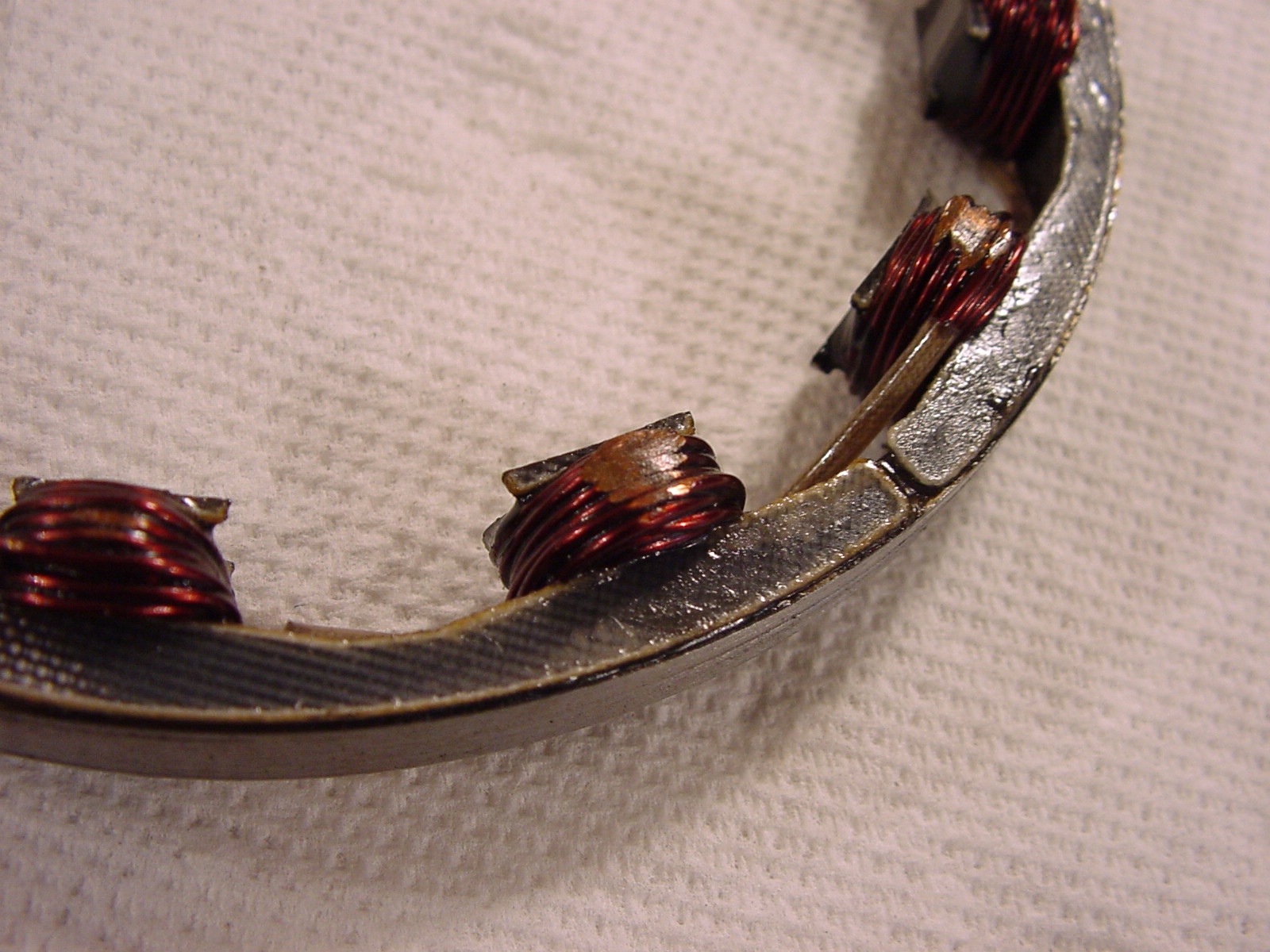

Unwinding the failed coil will break the tiny little ears of insulating laminate that along with the black epoxy hold the coil in place, (trying to rewind the coil without these ears results in the coil falling off the iron core, the first two attempts) You have to be careful not to break the wire coming from the next door coil as it is insulated with epoxy filled fiberglass sleeving (available from Farnells) that has to be removed so you can solder the new wire to it.
You will need to make new insulating laminates with stronger ears (third attempt, new laminates with thin ears broke) before you can attempt to rewind the coil.
After rewinding, encapsulate it in epoxy and gently squeeze the coil outwards (away from the rotor, in a radial direction) while the epoxy sets.
Terminate the coil wires with flexible wire.
Regards
Peter
- Log in to post comments
Alton stator
Hi Roger , Peter has just undertaken a repair/ rewind on my stator coil so he will be able to advise you on the wire gauge. .
- Log in to post comments
Alton stator
Many thanks Peter for the first class repair you achieved . The system is now back together and charging as it should . Good to have the electric start back on stream . Thanks . Barry.
- Log in to post comments
That is good, Always nice to…
That is good, Always nice to receive feedback on a repair.
Many thanks
- Log in to post comments
I am happy to look, I can reconnect the Lucas stators. But if we knew where you are this would be a good idea. I am in mid Norfolk.
