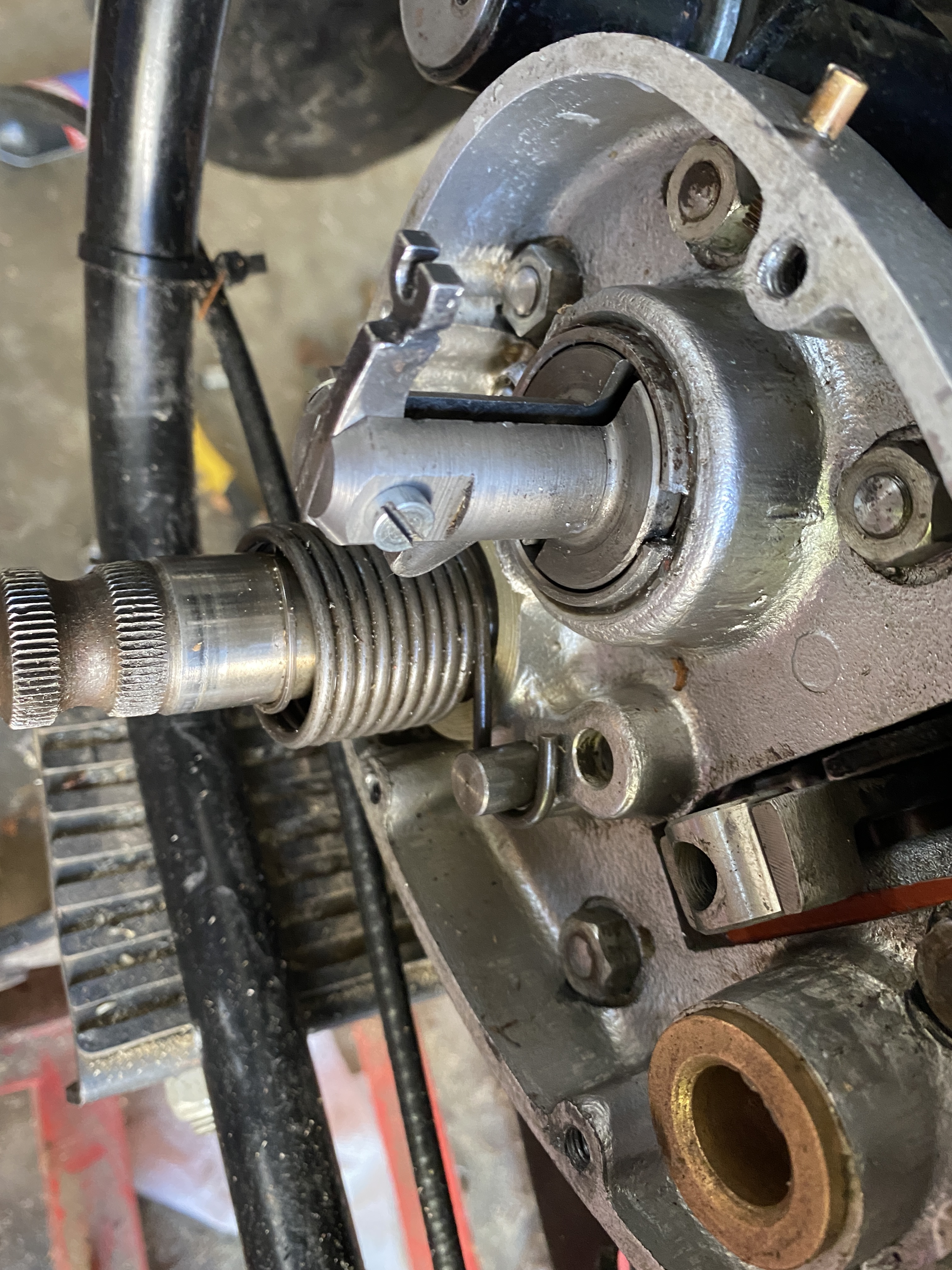

See below photo please. (terms used for components are those used the the official Norton Shop Manual) As I can see it there is only one way to position the Clutch Operating Lever so that it can contact the Clutch Operating Ball which then engages with the Clutch Pushrod to operate the clutch.

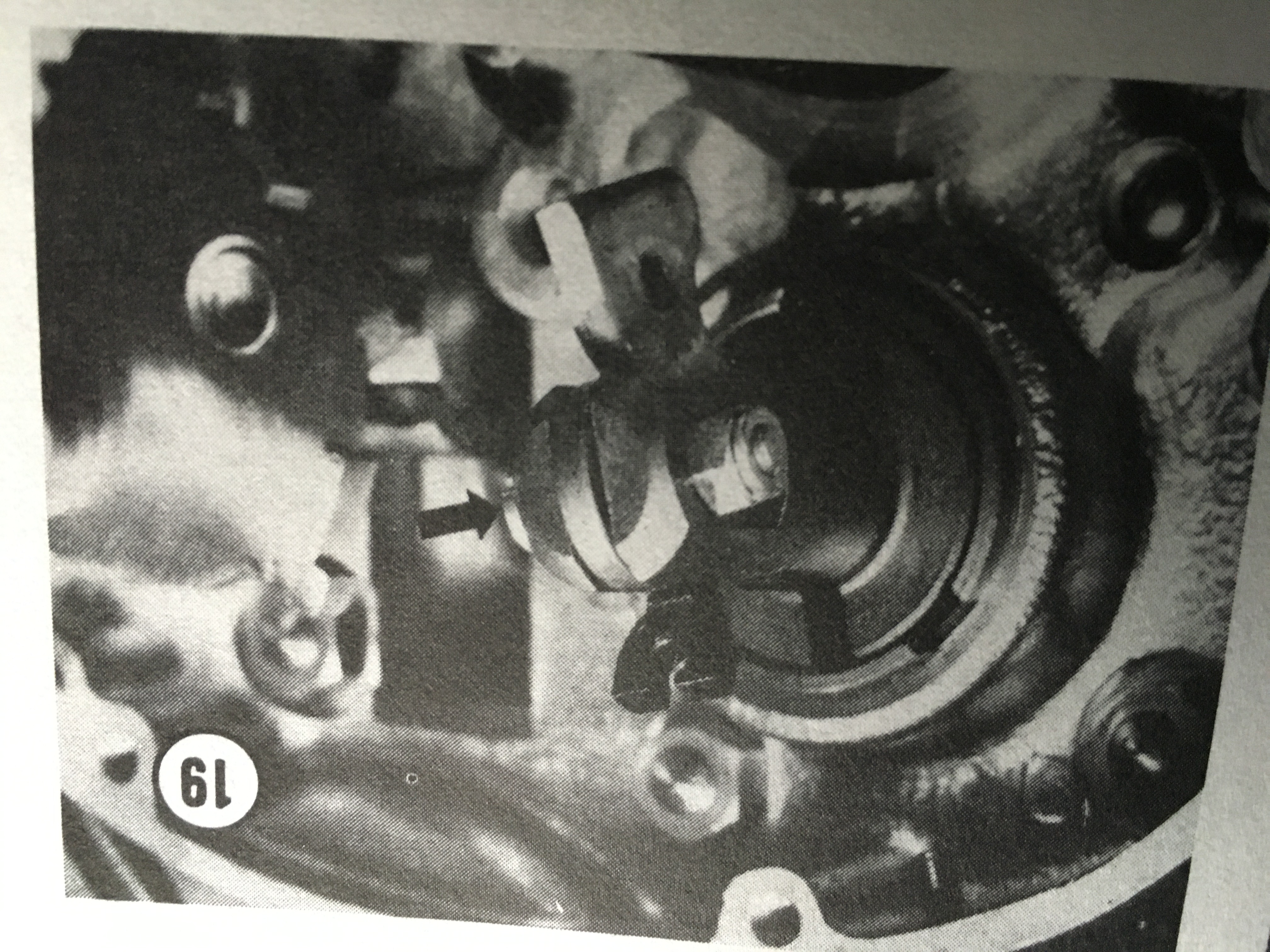

In section D of the shop manual directly above Fig. D6 it states "....where the clutch the clutch cable can exert a straight pull, as the lockring ...."
1. I can't even disengage the clutch manually with a pair of locking pliers with the outer transmission cover removed -- it simply won't budge.
2. Please look at the photo and tell me what I am doing wrong.
Sorry it's the "Gearbox Outer Cover"
- Log in to post comments
Hi RonThe clutch actuating…
Hi Ron
The clutch actuating lever should not be bolted to anything. The holes in the lever serve no purpose. In fact, the new one I bought from Andover Norton had no holes.

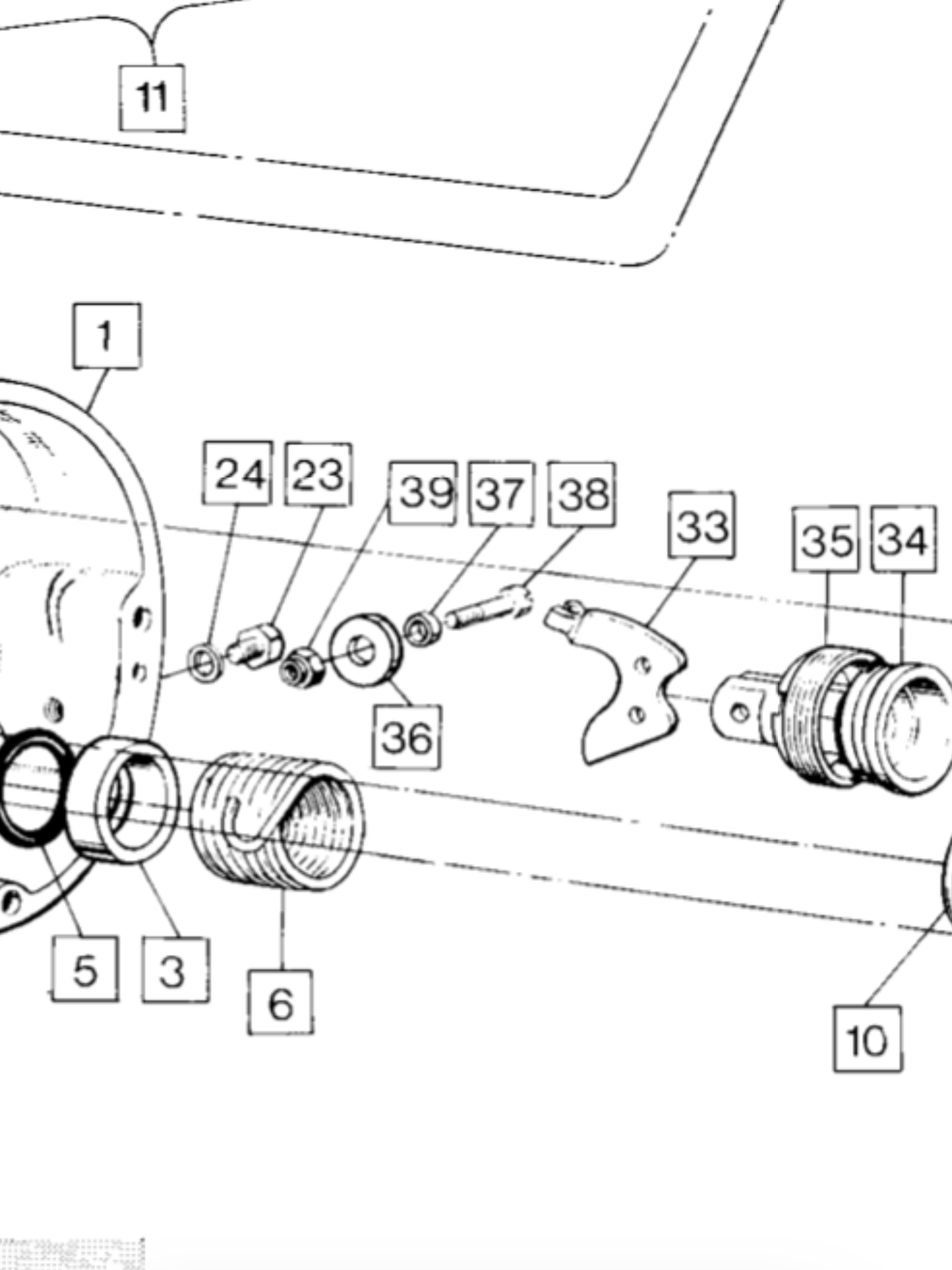

See attached pic. The lever part 33, slides into part 34.
The wheel and Bush (36 and 37) then slide into 34 and are bolted in place by nut and bolt 38 and 39. The actuator arm is then free to roll on the wheel and push onto the ball bearing that in turn pushes the clutch pushrod. When attaching the cable make sure that the arm hasn’t dropped down and disengaged from its proper pivot position.
Hope this helps.
- Log in to post comments
Trying to explain.
The picture Steve submitted is a bit confusing as it don't show the 1/2 inch ball going in between pushrod and the operating lever. See https://andover-norton.co.uk/en/shop-drawing/516/gearbox
So the lever is hold in place by the ball on one side and the roller on the other side.If you remove the adjust screw on the clutch, you can insert a rod or screwdriver feeling pushrod movement without fighting with the clutch spring. Thus verifying that lever movement transmits to the pushrod. I think I tried as you did with pliers half a century ago. Didn't work, never tried again.
Mike
- Log in to post comments
Looks like the operating lever is fitted backwards
Looks like the operating lever is fitted backwards,
- Log in to post comments
And fitted where the roller…
And fitted where the roller shall be. Roller shall rotate with bolt as axle. Also important that the clutch operating body is fitted so that the wire pulls in a straight line. Mark inner cover with a felt pen where the clutch cable enters the outer cover.
- Log in to post comments
Success, Issue Fixed
Thank you Steve, Mikeal and Peter,
Once I realized "the clutch actuating lever isn't bolted to anything" I installed the cable and the clutch now disengages smoothly as expected.
Lesson Learned: Always take photos whenever disassembling anything mechanical.
The referenced video was rejected as "to large" and I could not figure out how to trim it down.
It was just a video showing the pressure plate operating.
Again, thank you for the excellent suggestions that solved my problem.
Ron
- Log in to post comments
Yes It Was Fitted Backwards
Thank you Peter.
In the photo I posted it was fitted backwards. you are correct.
- Log in to post comments
not the transmission as we call the gearbox in the USA.
